Grille: Service and Repair

GRILLE

REMOVAL

1. Open hood and support.

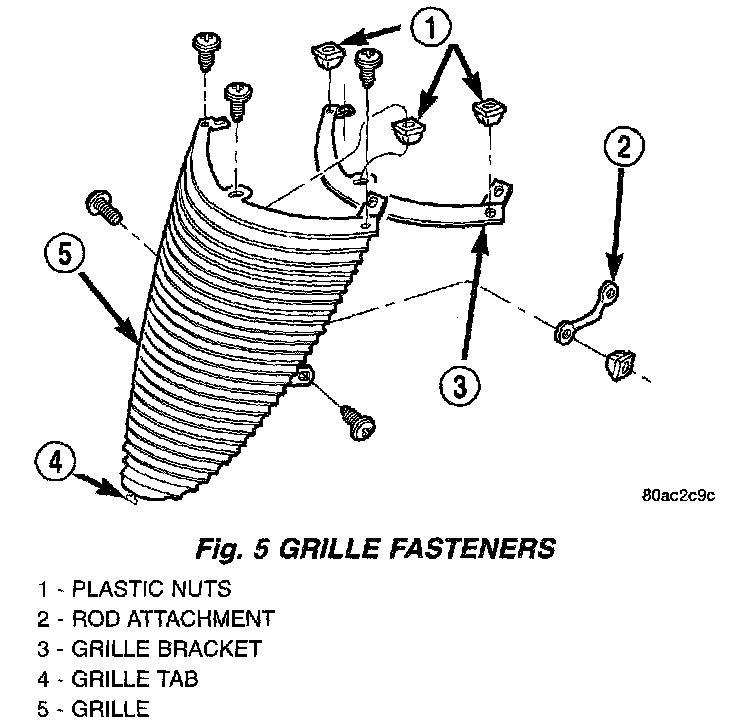

Fig. 5:

2. Remove screws attaching grille bracket to front structure (Fig. 5).
3. Remove screws attaching grille link rods to isolator crossmember.
4. Remove grille from vehicle.

INSTALLATION

1. Line up grille bottom tab to tab slot on front fascia (Fig. 5).
2. Install screws attaching grille bracket to front structure and tighten to 3 N.m (30 in.lbs.) torque.
3. Install screws attaching grille lator crossmember.
