Side View Mirror

SIDE VIEW MIRROR

REMOVAL

1. Open door and roll door glass to full up position.
2. Remove door trim panel and watershield as necessary to access mirror wiring pigtail.
3. Disconnect side view mirror wire connector.

NOTE: The mirror wiring pigtail is attached to the upper beam end plate with a Christmas tree push pin.

4. Lower door glass.

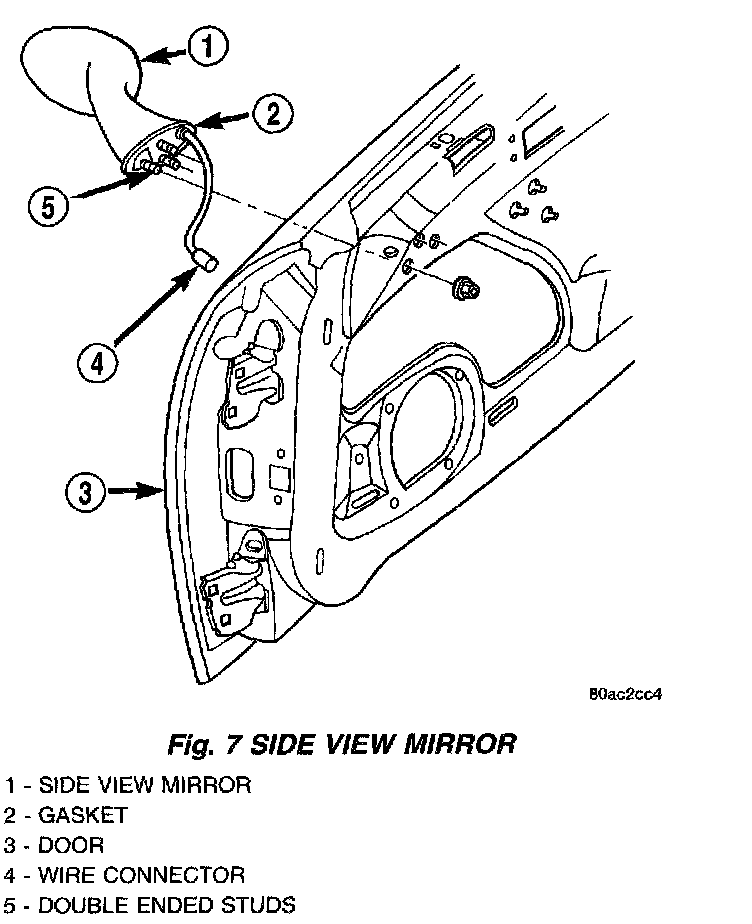

Fig. 7:

5. Remove fasteners attaching the side view mirror to door panel (Fig. 7).
6. Remove side view mirror and gasket from door.

INSTALLATION

1. Position side view mirror and gasket to door.
2. Install fasteners attaching side view mirror door panel.
3. Raise door glass.
4. Connect side view mirror wire connector.
5. Install door watershield and trim panel
