Cruise Control Vacuum Reservoir: Service and Repair
REMOVAL 1.
Remove 2 screws from vacuum reservoir.

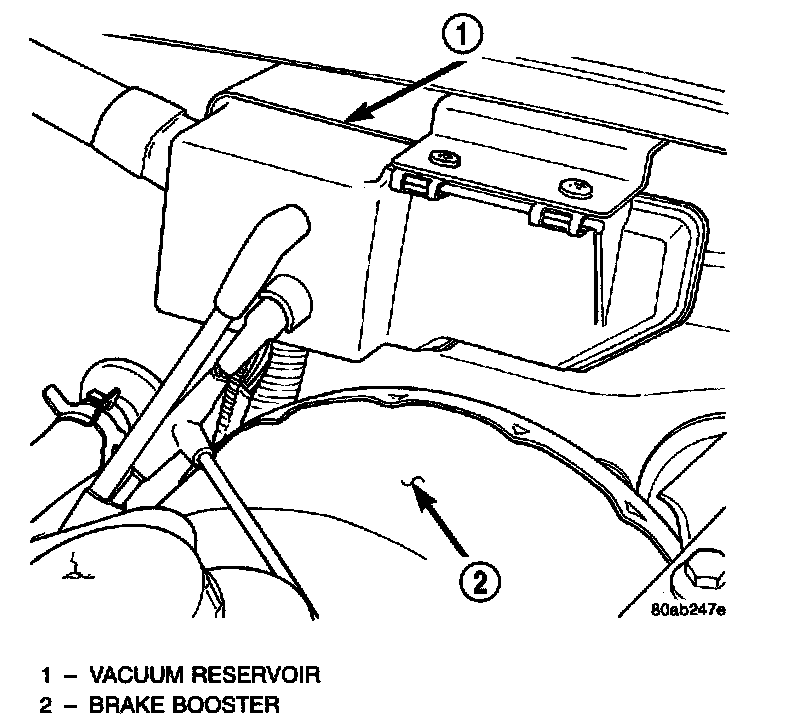

Vacuum Reservoir:
2.
Remove vacuum hoses from reservoir.
3.
Remove vacuum reservoir.
INSTALLATION 1.
Install vacuum reservoir.
2.
Install 2 screws and tighten.
3.
Install vacuum hoses to reservoir.
