Blower Motor Resistor: Service and Repair

REMOVAL
The blower motor resistor is located in the bulkhead of the vehicle under the cowl trim panel and behind the windshield washer reservoir.
1. Remove both wiper arms.

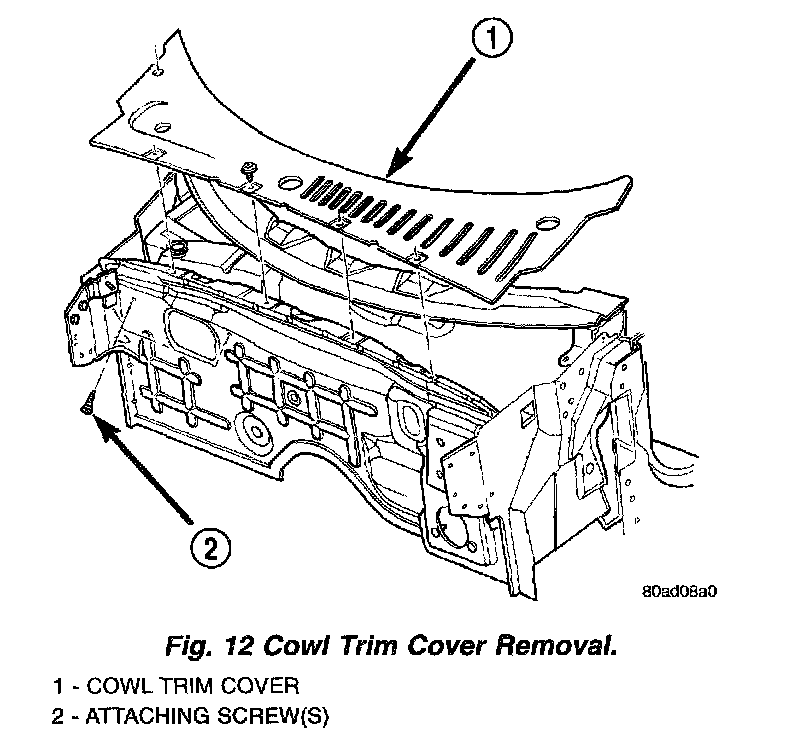

Fig.12 Cowl Trim Cover Removal:




2. Remove cowl trim cover.
3. The blower motor resistor is behind the windshield washer reservoir. Disconnect wiring connector on blower motor resistor.
4. Remove blower motor resistor retaining screws.

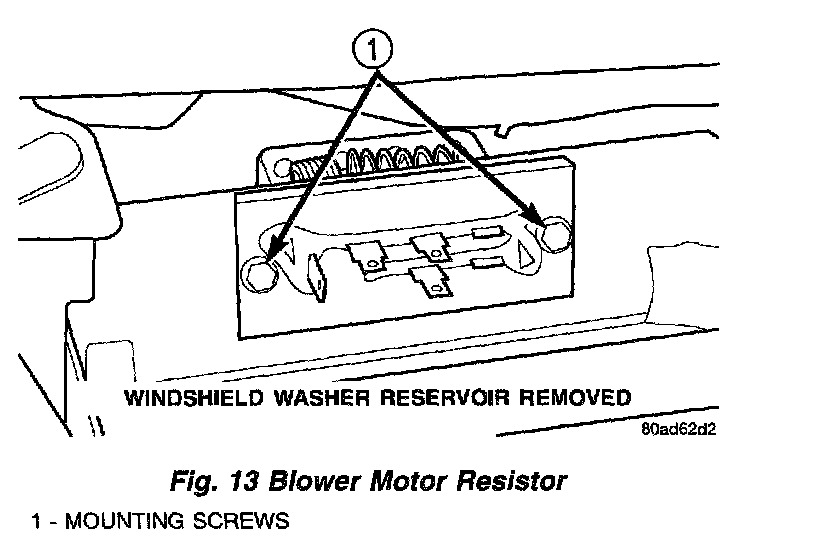

Fig.13 Blower Motor Resistor:




5. Pull blower motor resistor out of bulkhead.

INSTALLATION
1. Position the resistor in the bulkhead.
2. Install the retaining screws.
3. Connect the wire harness connector.
4. Install the cowl trim cover.
5. Install the wiper arms.
