Battery Temperature Sensor: Service and Repair
REMOVAL 1.
Remove the negative battery cable.

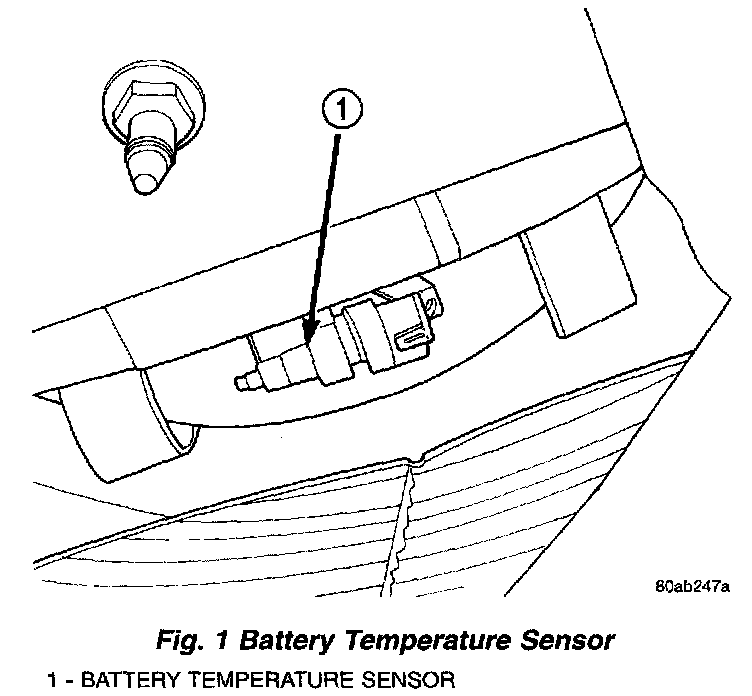

Fig.1 Battery Temperature Sensor:
2.
Disconnect the electrical connector from sensor (Fig. 1).
3.
Remove the plastic push pin.
4.
Remove sensor.
INSTALLATION 1.
Install plastic push pin to sensor.
2.
Install both to crossmember and push in center pin.
3.
Connect the electrical connector to sensor.
4.
Connect the negative battery cable.
