Crankshaft Position Sensor: Service and Repair

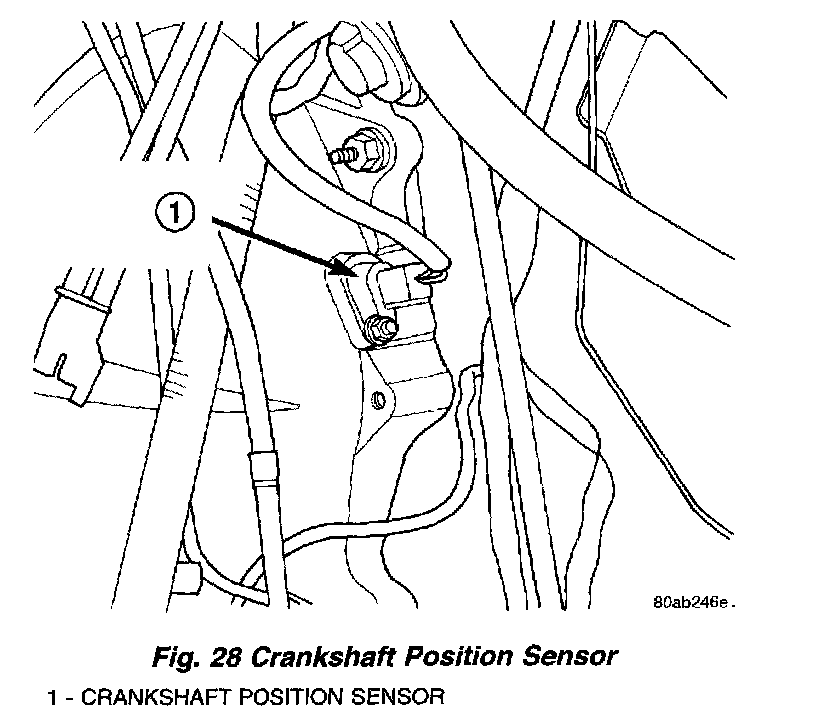

Fig. 28 Crankshaft Position Sensor:
REMOVAL
The crankshaft sensor is located on the passengers side of the engine bell housing,. The bottom of the sensor sits above the drive plate.
1. Raise and support vehicle.
2. Disconnect electrical connector from crankshaft position sensor.
3. Remove sensor mounting screw. Remove sensor.
INSTALLATION
1. Install sensor and tighten the bolt to 12 Nm (105 in. lbs.).
2. Connect electrical connector to the crankshaft position sensor.
3. Lower vehicle.
