Manifold Pressure/Vacuum Sensor: Service and Repair

MANIFOLD ABSOLUTE PRESSURE/AIR TEMPERATURE SENSOR

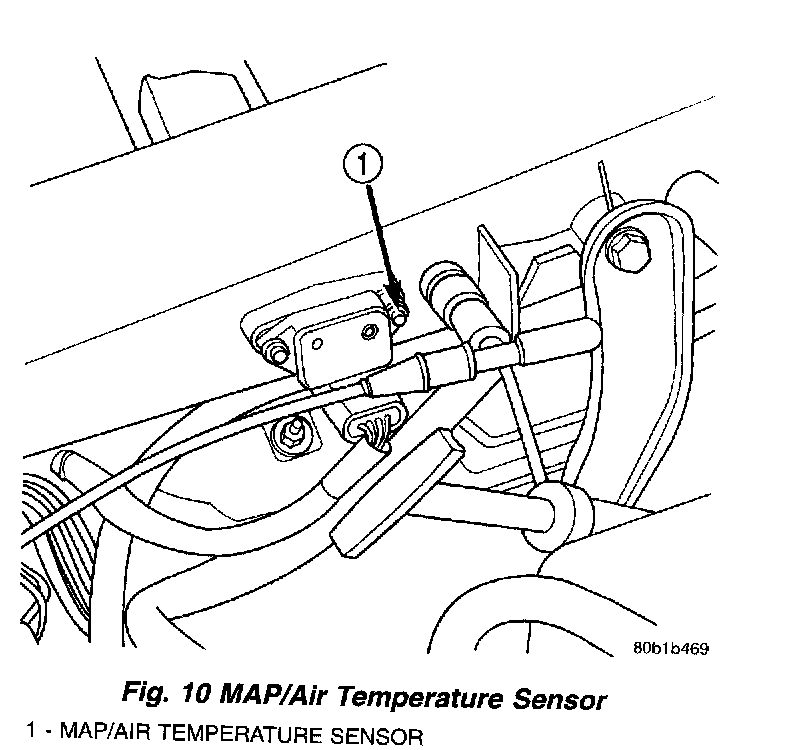

Fig. 10 MAP/Air Temperature Sensor:

REMOVAL
The MAP/Temperature sensor mounts onto the left side of the intake manifold plenum.
1. Disconnect the electrical connector from the MAP/Temperature sensor.
2. Remove screws from sensor.
3. Remove sensor.

INSTALLATION
1. Screw sensor to intake and tighten fasteners to 3 Nm (26.5 in. lbs.).
2. Attach electrical connector to sensor.
