Chime Inoperative At All Times
Tests 1 - 4:

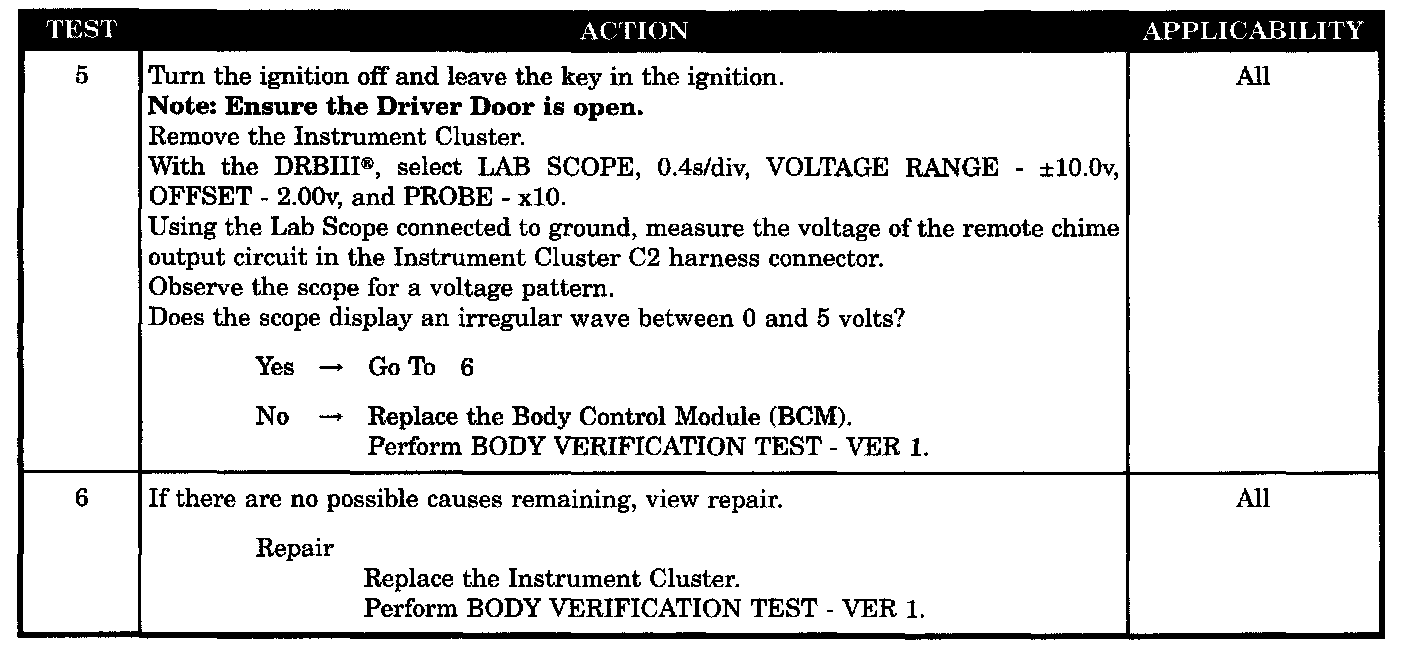

Tests 5 - 6:
SYMPTOM CHIME INOPERATIVE AT ALL TIMES
POSSIBLE CAUSES -
Remote chime output circuit shorted to voltage
-
Remote chime output circuit shorted to ground
-
Remote chime output circuit open
-
Actuates OK
-
Body control module -
Instrument cluster
