Power Window Switch: Service and Repair

REMOVAL
1. Disconnect and isolate the battery negative cable.

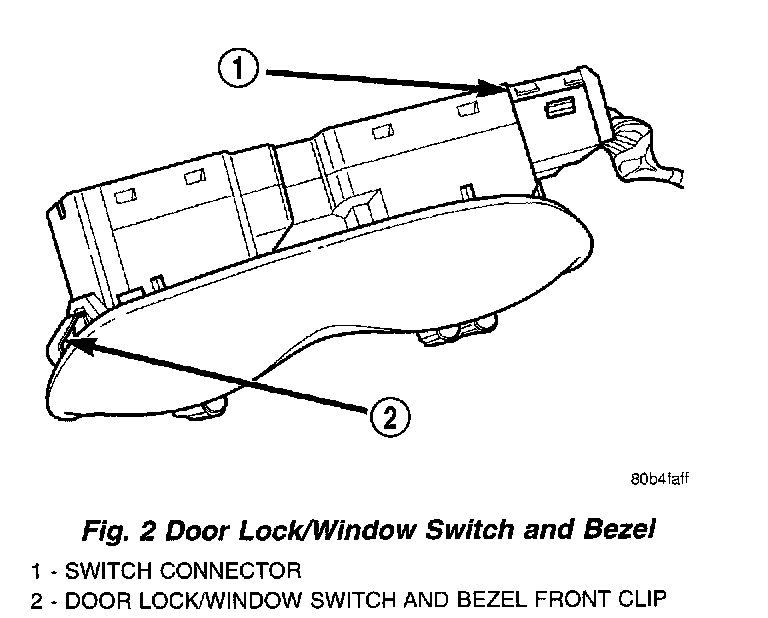

Door Lock/Window Switch And Bezel:




2. Using a trim stick (special tool #C-4755), place it underneath the front lip of the switch bezel and depress the front clip. Pry the switch bezel up to release it from the trim panel.
3. Disconnect the switch connector.

INSTALLATION
1. Reconnect the switch connector.
2. Align the switch bezel and fully snap into the trim panel opening.
3. Reconnect the battery negative cable.
