Flex Plate: Service and Repair
FLEX PLATEREMOVAL 1.
Remove the transaxle.
2.
Remove the

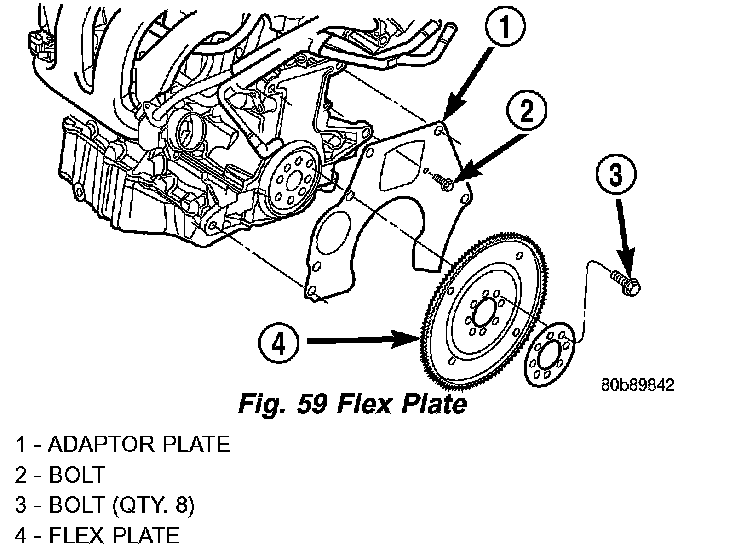

flex plate attaching bolts (Fig. 59).
3.
Remove the
flex plate (Fig. 59).
INSTALLATION 1.
Position the drive plate on crankshaft (Fig. 59).
2.
Apply Mopar Lock & Seal Adhesive to
flex plate bolt threads.
3.
Install the
flex plate bolts and tighten to
95 Nm (70 ft. lbs.) (Fig. 59).
4.
Install the transaxle.
