Front Fender Liner: Service and Repair

FRONT WHEELHOUSE SPLASH SHIELD

REMOVAL

1. Hoist and support vehicle on safety stands.
2. Remove front wheel.
3. Remove push pin fasteners attaching splash shield to frame rail forward of suspension.
4. Remove push pin fasteners attaching splash shield to frame rail rearward of suspension.
5. Remove screws attaching wheelhouse splash shield to front fender and front bumper fascia.

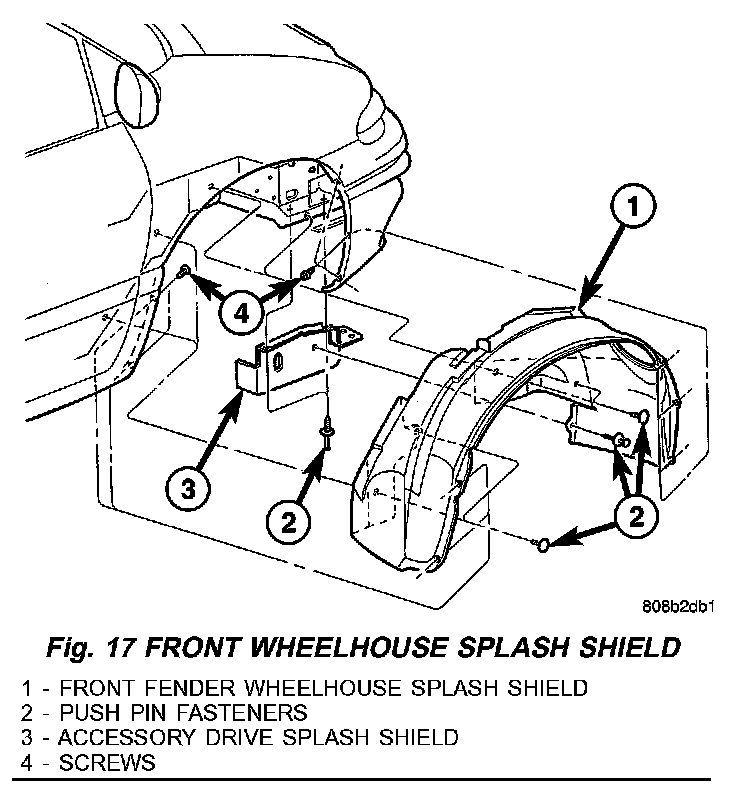

Fig. 17:




6. Remove splash shield from vehicle (Fig. 17).

INSTALLATION

1. Place splash shield in position on vehicle (Fig. 17).
2. Install push pin fasteners attaching splash shield to frame rail forward of suspension.
3. Install push pin fasteners attaching splash shield to frame rail rearward of suspension.
4. Install screws attaching wheelhouse splash shield to front fender.
5. Install front wheel.
6. Lower vehicle.
