Ignition Coil Capacitor Replacement

IGNITION COIL CAPACITOR

REMOVAL
1. Disconnect the negative battery cable.

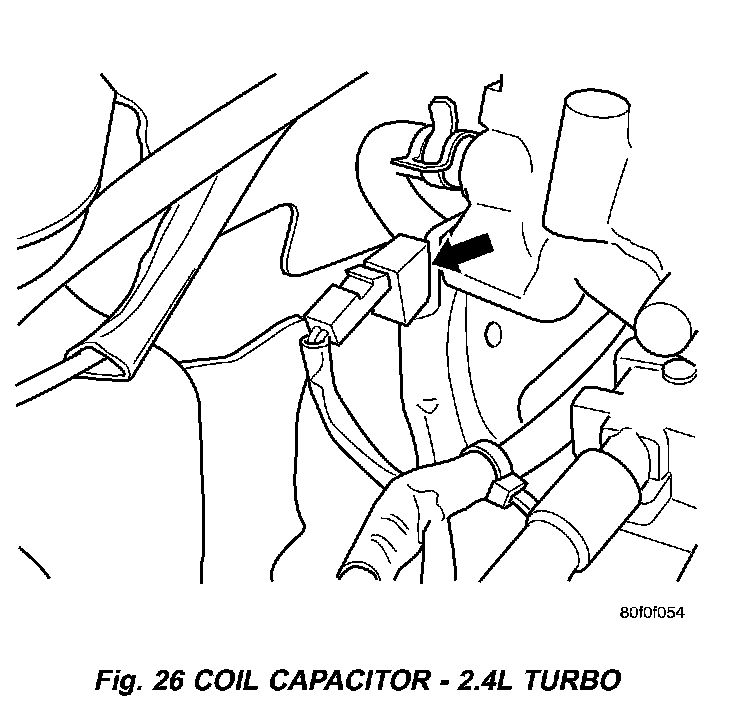

Fig. 26 Coil Capacitor - 2.4L Turbo:

2. Remove the electrical connector from the ignition coil capacitor.
3. Remove mounting bolt and remove capacitor.

INSTALLATION
1. Install coil capacitor and mounting bolt and tighten to 11.8 Nm (105 in. lbs.).
2. Connect the electrical connector.
3. Connect the negative battery cable.
