Cabin Air Filter / Purifier: Service and Repair

REMOVAL

1. Open the hood.

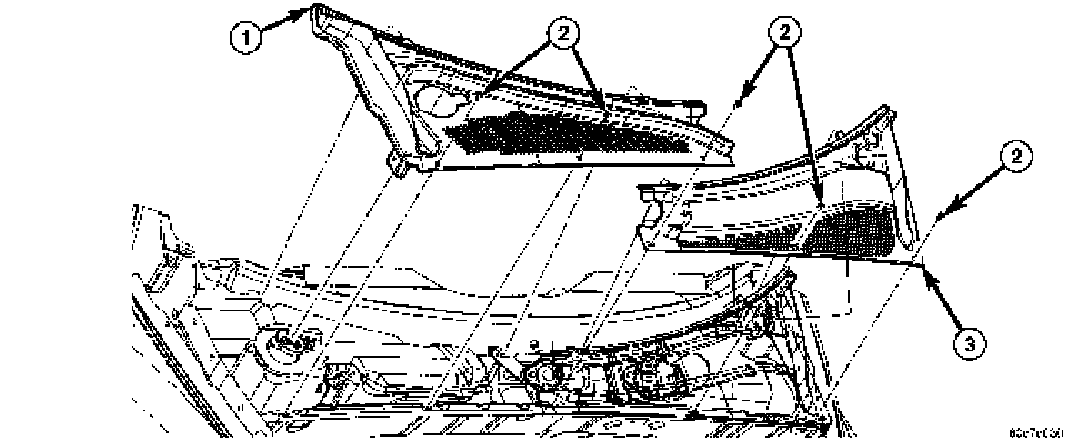

2. Remove the passenger side cowl grille screen.
3. Loosen the bolts fastening windshield washer reservoir to the body Removal of the reservoir is not necessary just loosen it enough to allow access to the filter element.
4. Remove the filter element by lifting the filter element up and out of it housing.

INSTALLATION

1. Install filter element by inserting the element down directly into the element housing. The filter is held in place by friction between the filter element and the housing so no fasteners are used..
2. Position windshield washer reservoir and tighten bolts to 8 Nm ( 70 in. lbs.).
3. Install passenger side cowl grill screen.
4. Close hood.
