Dome Lamp Unit With Intrusion Sensor - Export Replacement

REMOVAL
1. Disconnect and isolate the negative battery cable.

Fig. 4 Dome Lamp Unit With Intrusion Sensor Removal:




2. Grasp the dome lamp unit with intrusion sensor and rotate counterclockwise.
3. Pull straight down on dome lamp unit with intrusion sensor.
4. Disconnect electrical connector.
5. Remove the dome lamp unit with intrusion sensor from the vehicle.

INSTALLATION
1. Connect electrical connector.

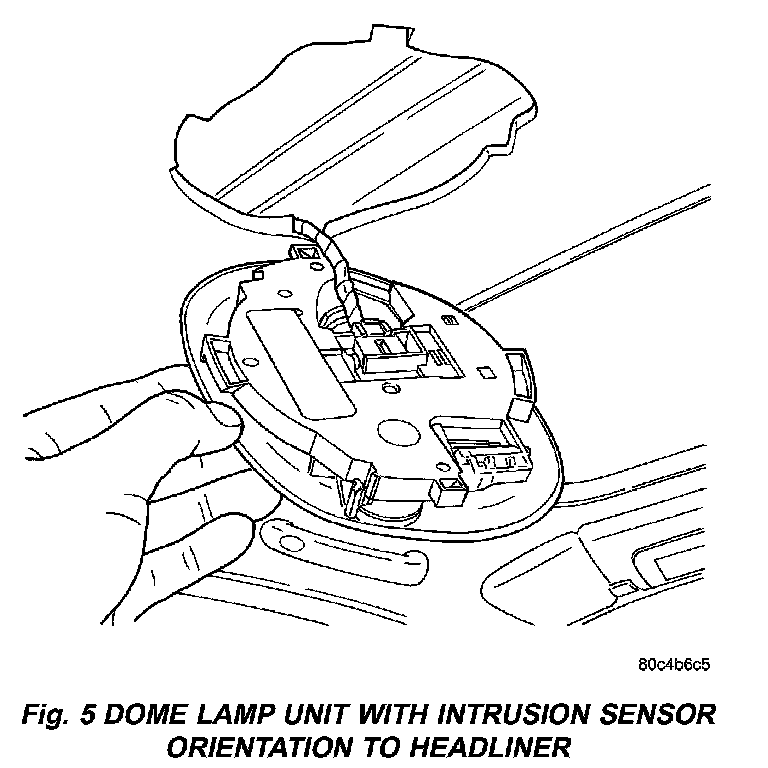

Fig. 5 Dome Lamp Unit With Intrusion Sensor Orientation To Headliner:




2. Orient the dome lamp unit with intrusion sensor in a way that the tabs align with the slots in the headliner.
3. Push the dome lamp unit with intrusion sensor straight up.
4. Rotate the dome lamp unit with intrusion sensor clockwise.
5. Connect the battery negative cable.
