Door Switch: Service and Repair

HOOD AJAR SWITCH EXPORT

REMOVAL
1. Open hood.

Fig.4 Battery Negative Cable Remove/Install:

2. Disconnect and isolate the battery negative cable (Fig. 1).
3. Disconnect wire harness connector from hood ajar switch.

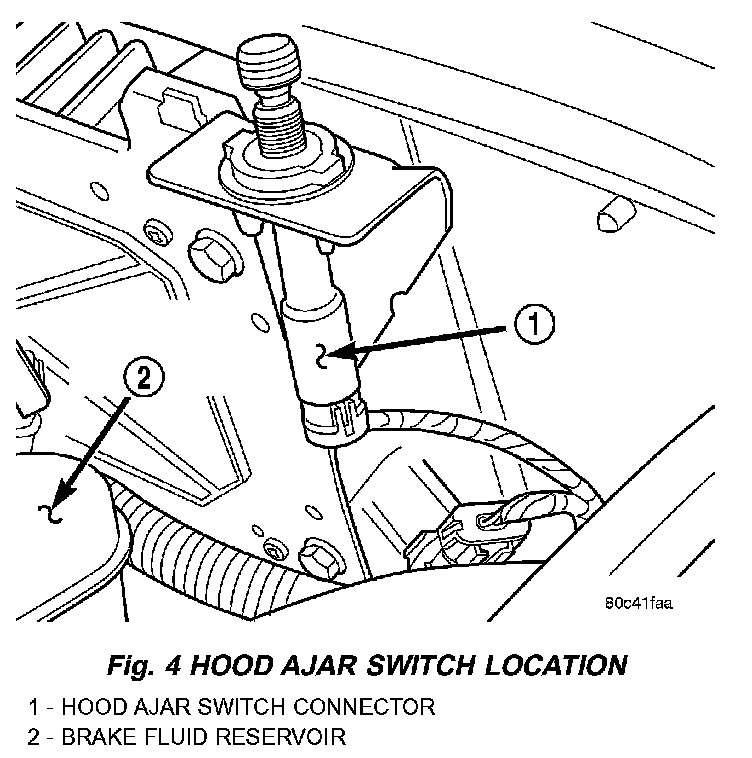

Fig. 4 Hood Ajar Switch Location:

4. Firmly press tangs on the bottom side of the switch together and push up through bracket (Fig. 4).
5. Remove switch from vehicle.

INSTALLATION
1. Firmly press hood ajar switch through bracket (Fig. 4).
2. Connect wire harness connector to hood ajar switch.
3. Connect the battery negative cable (Fig. 1).
4. Close hood.
5. Verify vehicle and system operation.
