License Plate Lamp Unit Replacement

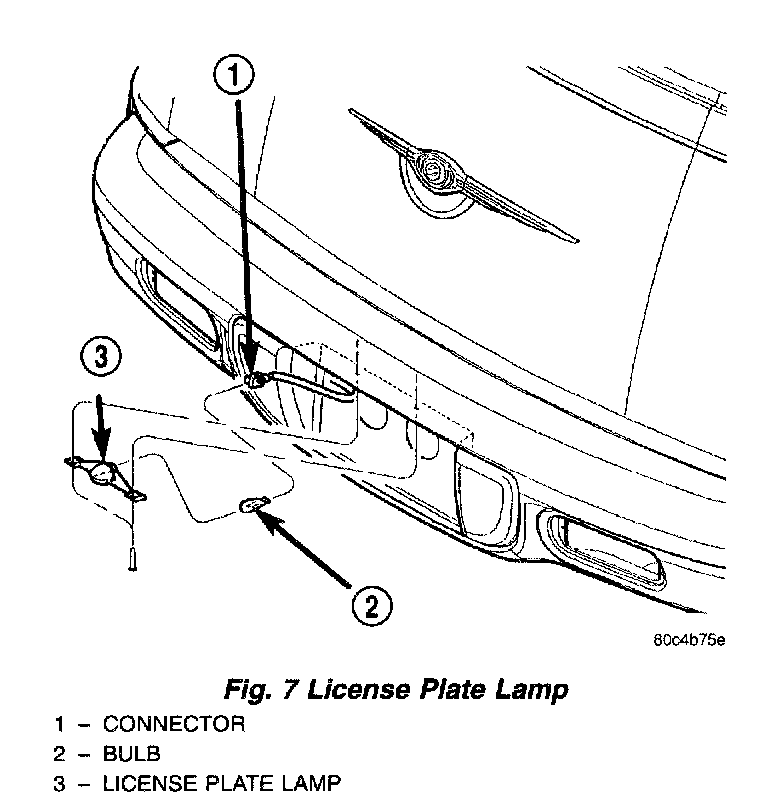

Fig.7 License Plate Lamp:
REMOVAL 1.
Remove screws attaching
license plate lamp to rear bumper.
2.
Remove lamp from bumper.
3.
Disconnect wire connector and bulb.
INSTALLATION 1.
Connect wire connector and bulb (Fig 25).
2.
Place lamp in position.
3.
Install screws attaching
license plate lamp to rear bumper.
