Case: Service and Repair

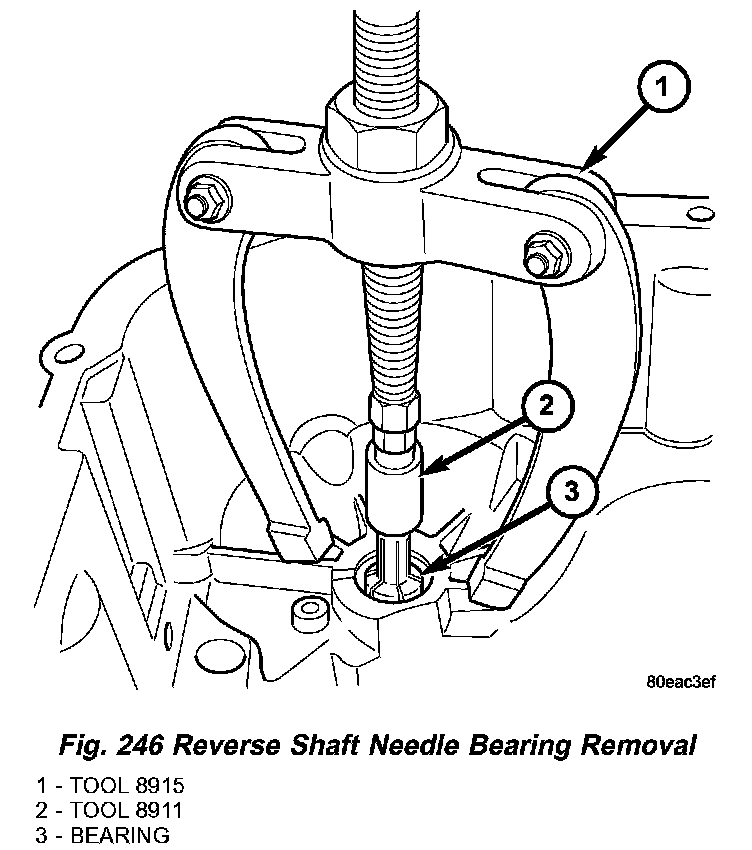

Fig. 246 Reverse Shaft Needle Bearing Removal:

TRANSAXLE HOUSING / DISASSEMBLY
1. Remove reverse shaft needle bearing using Tools 8915 and 8911 (Fig. 246).

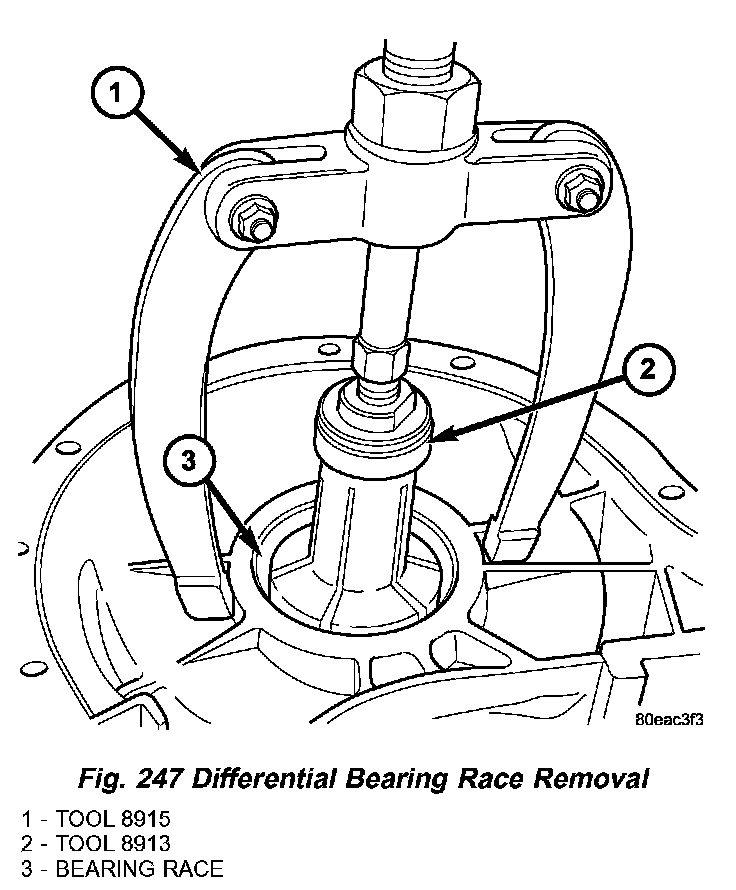

Fig. 247 Differential Bearing Race Removal:

2. Remove differential bearing cone using Tools 8915 and 8913 (Fig. 247).

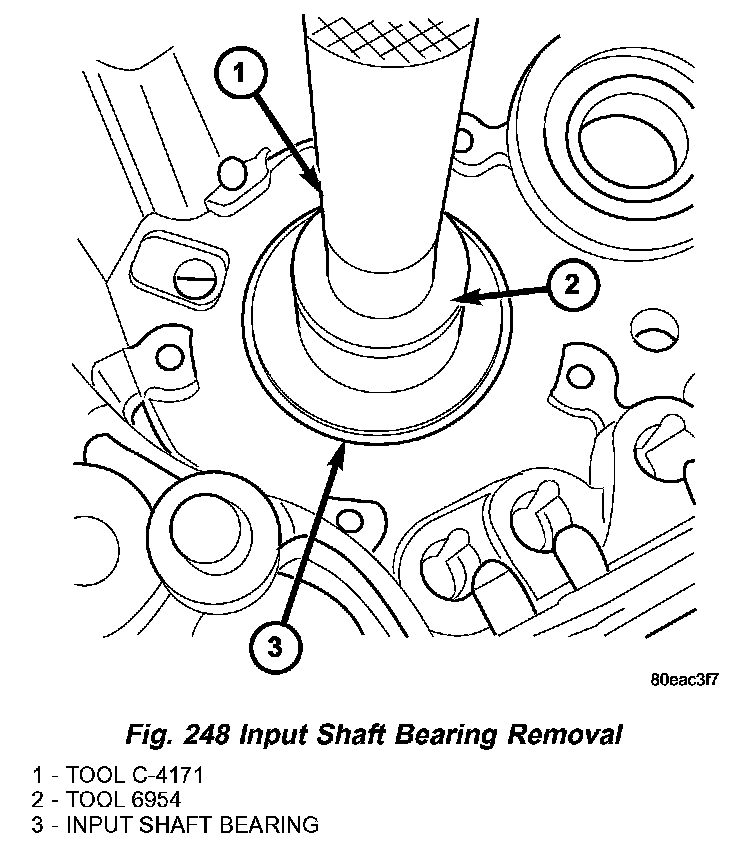

Fig. 248 Input Shaft Bearing Removal:

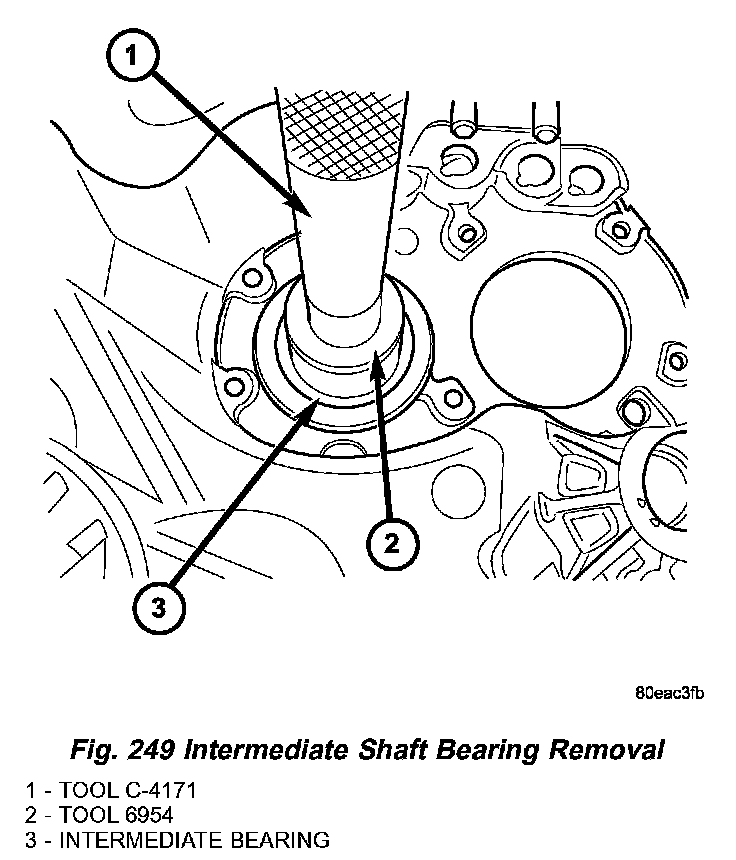

Fig. 249 Intermediate Shaft Bearing Removal:

3. Drive out input and intermediate shaft sealed roller bearings using Tools C-4171 and 6954 (Fig. 248) (Fig. 249).




ASSEMBLY

NOTE: Input and intermediate shaft sealed roller bearings do not get installed until transaxle assembly.

Fig. 250 Reverse Shaft Needle Bearing Installation:

1. Using Tools C-4171 and 8924, install reverse shaft needle bearing (Fig. 250). Drive until tool bottoms on case.

Fig. 251 Differential Bearing Race Installation:

2. Using Tools C-4171 and 8866, install differential bearing race (Fig. 251). Drive until race bottoms in case.
