Arm/Disarm Switch: Service and Repair
REMOVAL 1.
Remove the heated seat switches.
2.

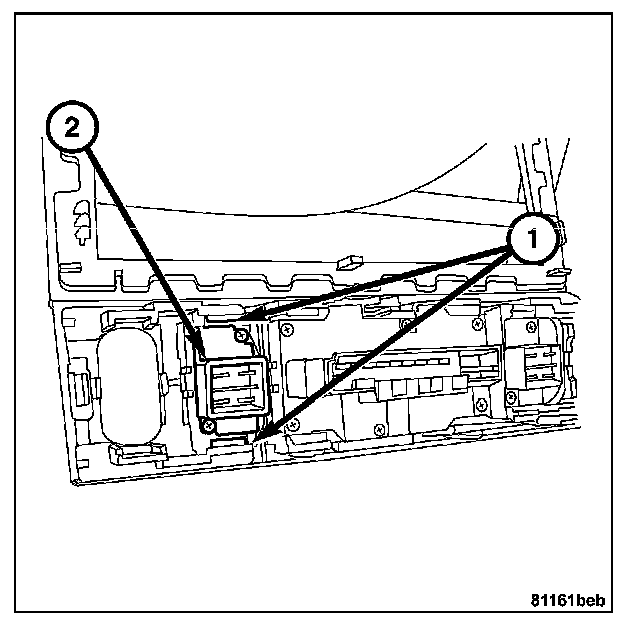

Carefully depress tabs (1) inward to remove the tow-away alarm switch (2).
INSTALLATION 1.
Install the tow-away alarm switch (2) and secure it by snapping the retaining tabs (1) into place.
2.
Install the heated seat switches.
