Timing Chain Tensioner: Service and Repair
REMOVAL 1.
Remove the generator.
2.

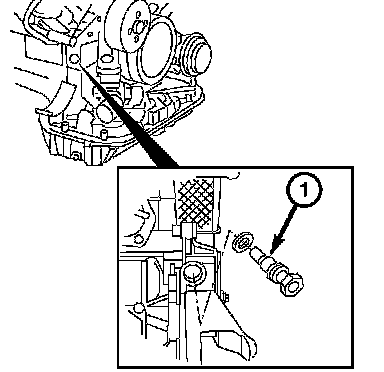

Remove the
timing chain tensioner (1).
INSTALLATION 1.
Install the
timing chain tensioner. Tighten the timing chain tensioner to
80 Nm (59 ft. lbs.).
2.
Install the generator.
