Timing Chain: Description and Operation

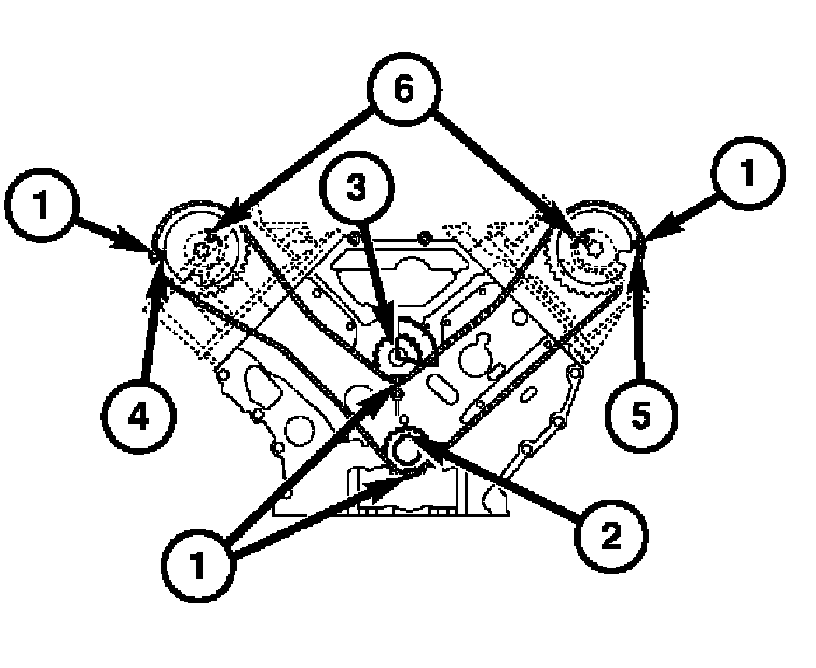

OPERATION The
crankshaft driven
timing chain maintains
camshaft (6) and
balance shaft (3) operation and timing. Timing marks on the crankshaft (2), balance shaft (3) and camshafts (5) are aligned with copper links (1) in the timing chain to keep symmetrical valve and ignition performance.
