Defroster Ducts Replacement




REMOVAL

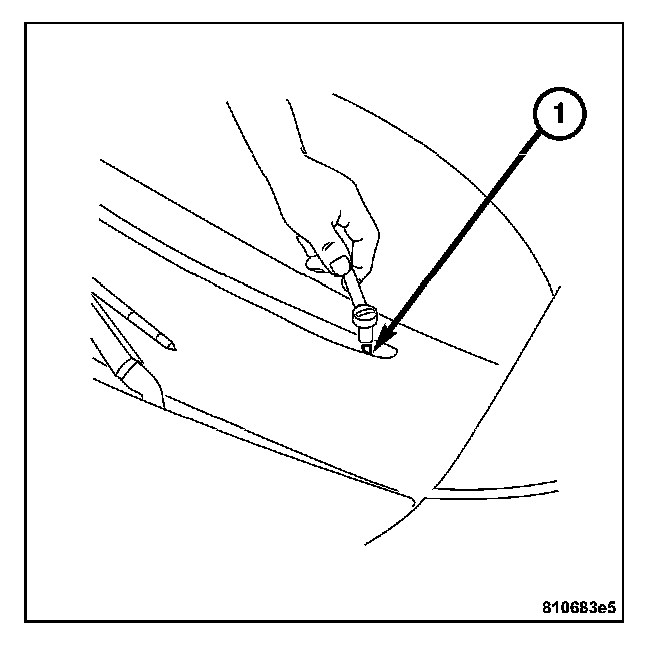

1. The defroster duct is part of the upper top section of the instrument panel. There are plastic trim pieces which make up the final duct distribution. These trim pieces can be removed by, removing the screws (1) in the outside edge of the trim piece the inner edge is held into place by a tab slid under the top section of the instrument panel.

INSTALLATION

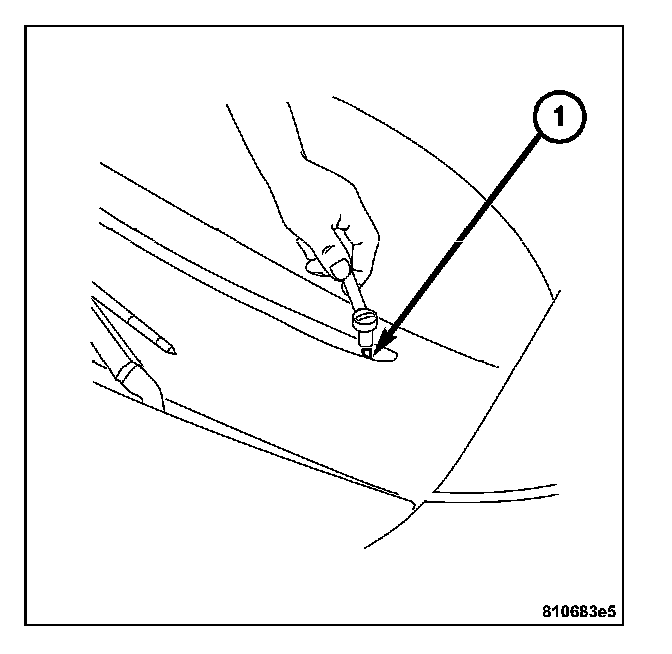

1. Install the defroster duct trim piece into the top section of the instrument panel. Then install the screw (1).
