Cargo Lamp Unit Replacement
REMOVAL 1.
Disconnect the negative battery cable.
2.

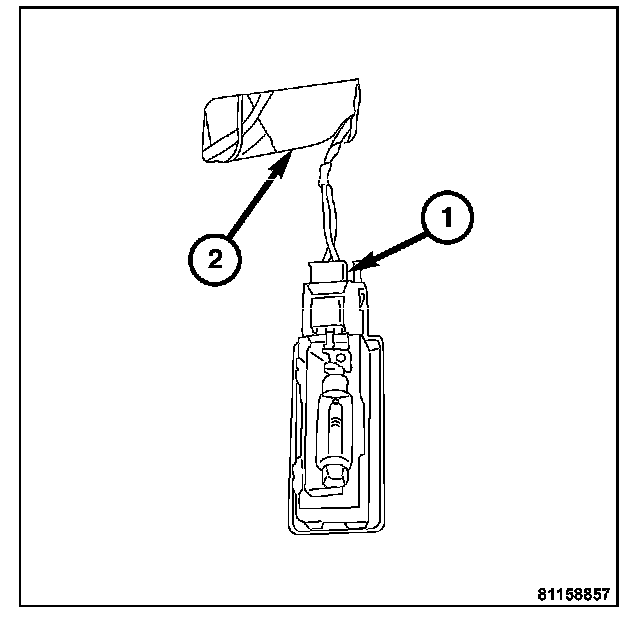

Gently pry the
cargo lamp unit (1) away from the cargo area interior trim panel (2).
3.
Disconnect the
cargo lamp unit harness connector (1) and remove from the vehicle.
INSTALLATION 1.

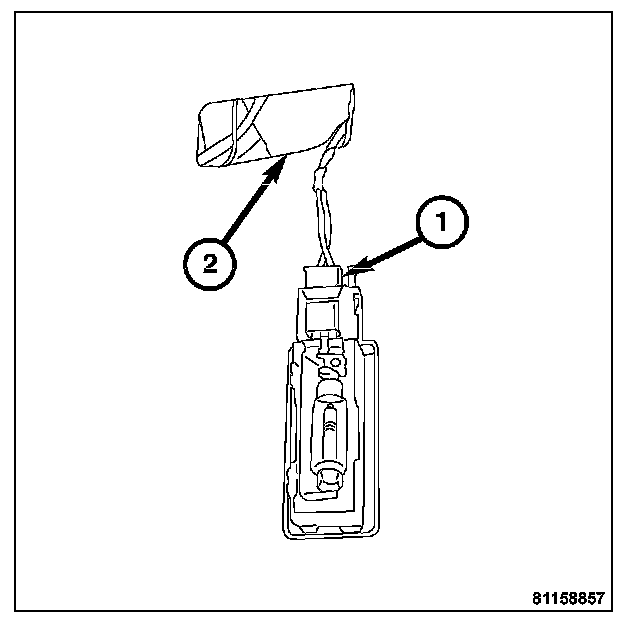

Connect the harness connector (1) into
cargo lamp unit and insert into the cargo area interior trim panel (2).
2.
Connect the negative battery cable.
