License Plate Lamp: Service and Repair

REMOVAL

1. Disconnect the negative battery cable.

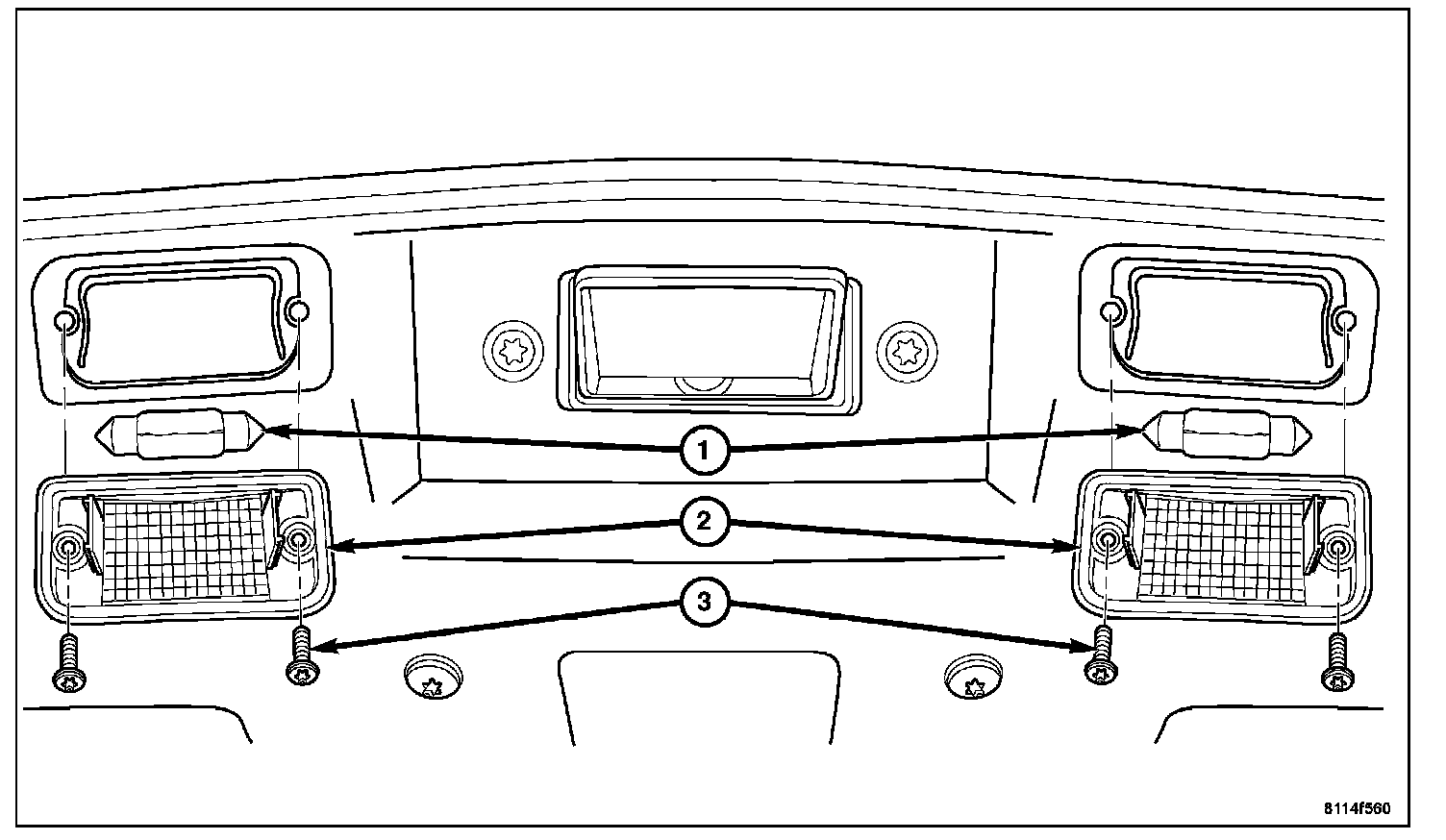

2. Open the liftgate and remove the license plate lamp lens attachment screws (3).

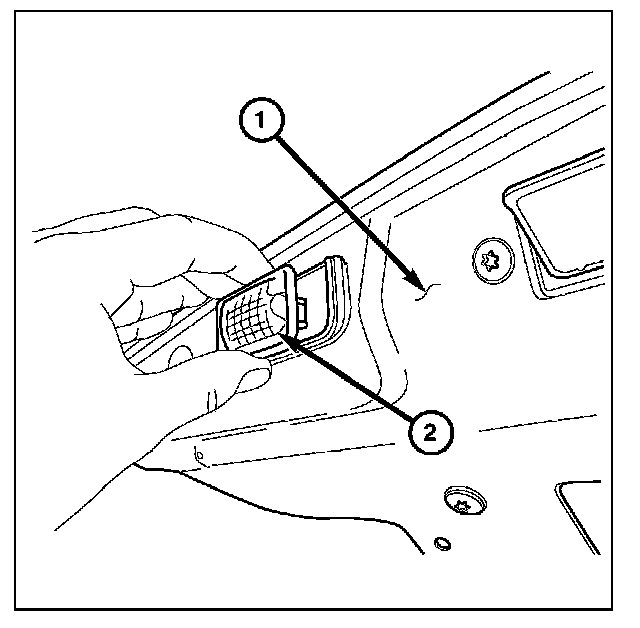

3. Remove the license plate lamp lens (2) and pull the bulb (1) outward from the lamp socket.

INSTALLATION
1. Insert the bulb into the lamp socket and place the license plate lamp lens (2) into position.

2. Install the attachment screws and secure. Close the liftgate.
3. Connect the negative battery cable.
