Battery Tray

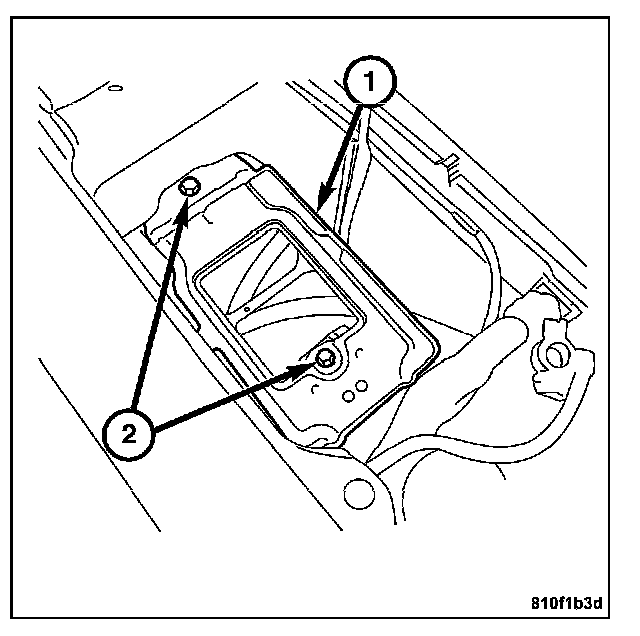

The battery is mounted in a battery tray (1) located in the right rear corner of the engine compartment. The battery tray and support unit is secured at the front with a bolt (2) on the front wheelhouse inner panel, and at the rear with a bolt (2) on a bracket from the bulkhead.

The battery tray provides a secure mounting location and supports the battery. The battery tray also provides the anchor points for the battery hold-down hardware. The battery tray and the battery hold-down hardware combine to secure and stabilize the battery in the engine compartment, which prevents battery movement during vehicle operation. Unrestrained battery movement during vehicle operation could result in damage to the vehicle, the battery, or both.
