Floor Distribution Ducts Replacement

REMOVAL
1. Remove the center floor console.

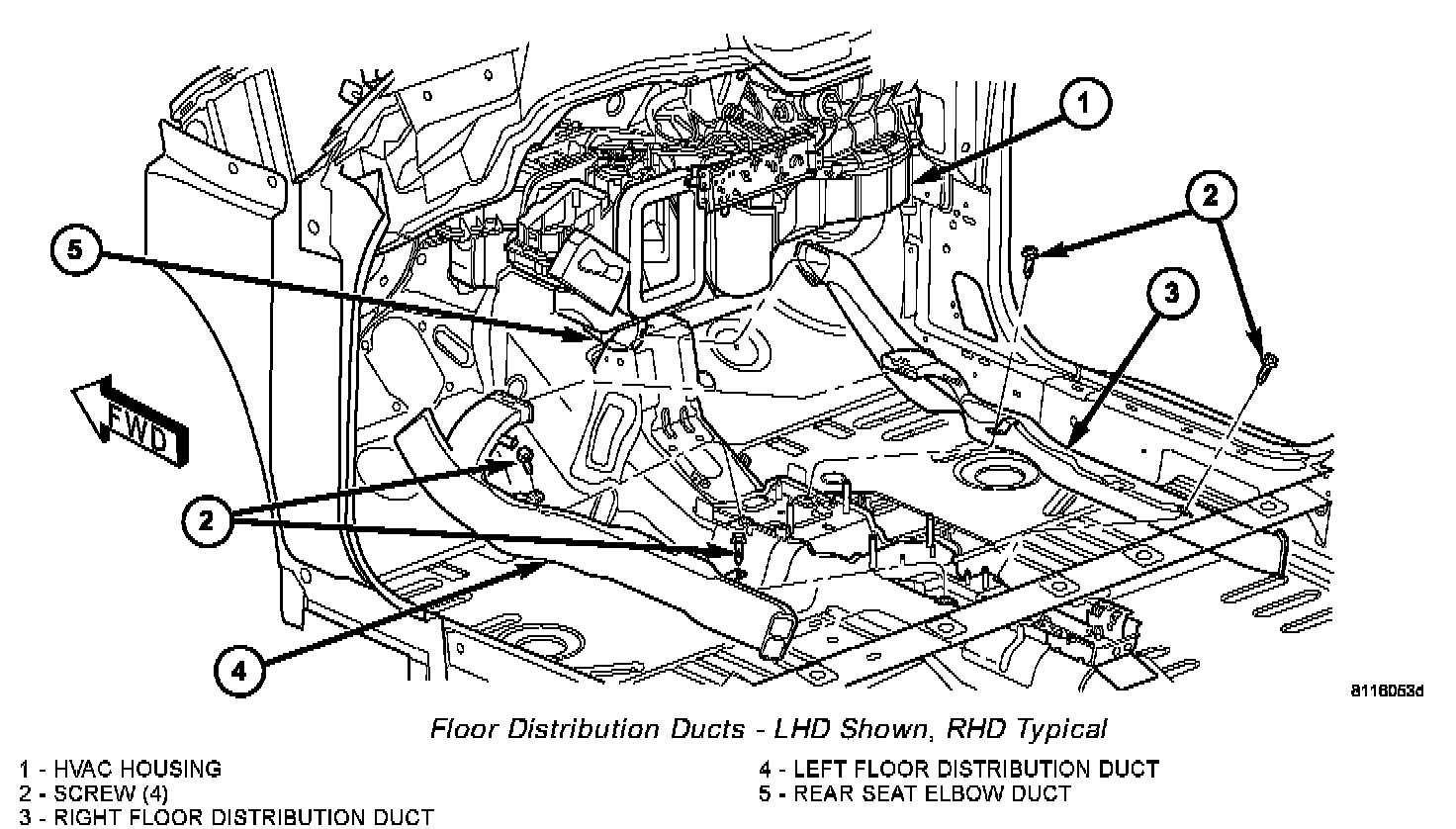

Floor Distribution Ducts - LHD Shown, RHD Typical:

2. Remove the screws that secure the left and right floor distribution ducts to the floor.
3. Disengage the floor distribution ducts from each other.
4. Disengage the floor distribution duct from the rear seat elbow duct located at the bottom of the HVAC housing.
5. Remove both floor distribution ducts from the vehicle.
6. If necessary, remove the rear seat elbow duct from the bottom of the HVAC housing.

INSTALLATION
1. If removed, install the rear seat elbow duct to the bottom of the HVAC housing.
2. Position both floor distribution ducts into the vehicle.
3. Engage the floor distribution duct to the rear seat elbow duct located at the bottom of the HVAC housing.
4. Engage the floor distribution ducts to each other.
5. Install the screws that secure the left and right floor distribution ducts to the floor. Tighten the screws to 2.3 Nm (20 in. IDS.).
6. Install the center floor console.
