Air Bag
Air Bag

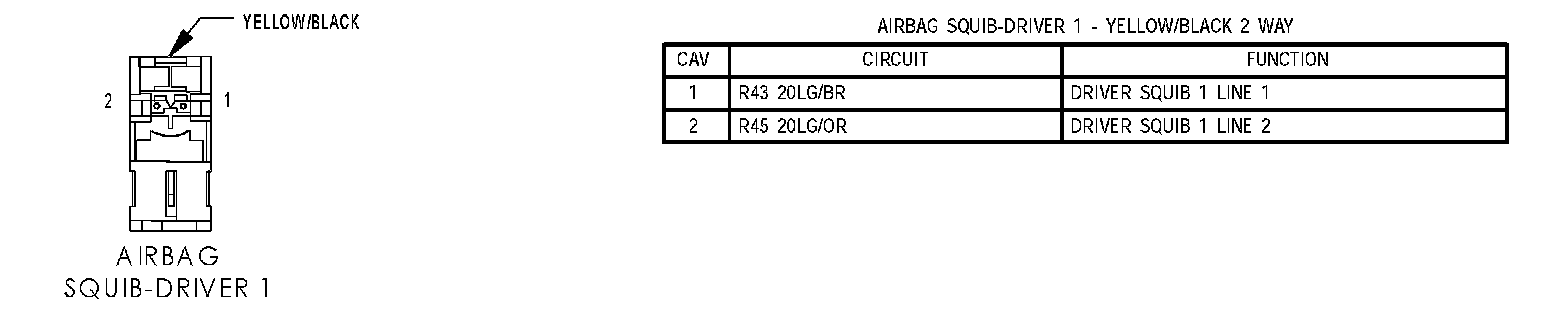

Air Bag Squib Driver 1:

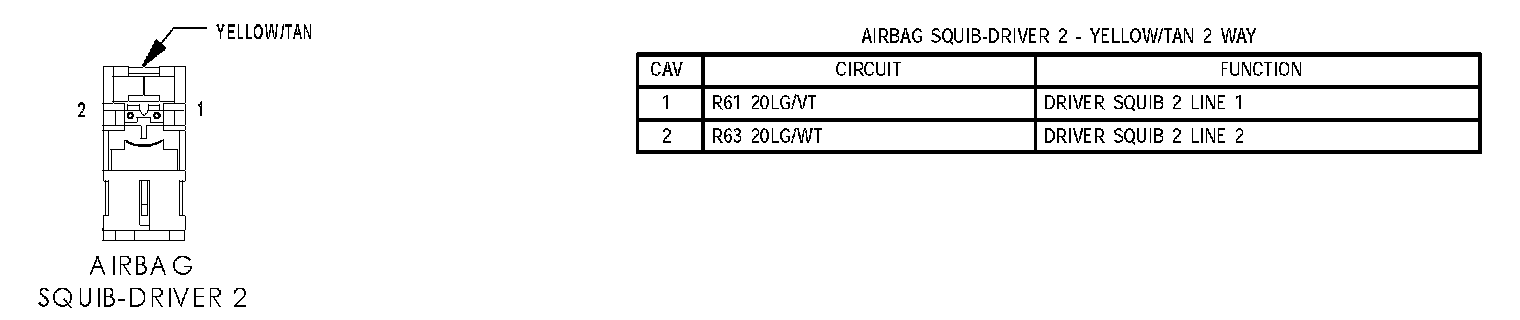

Air Bag Squib Driver 2:

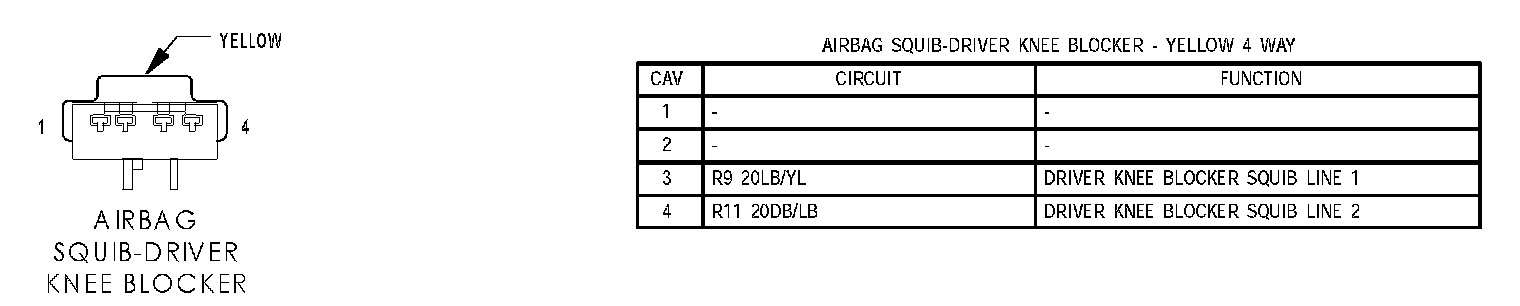

Air Bag Squib Driver Knee Blocker:

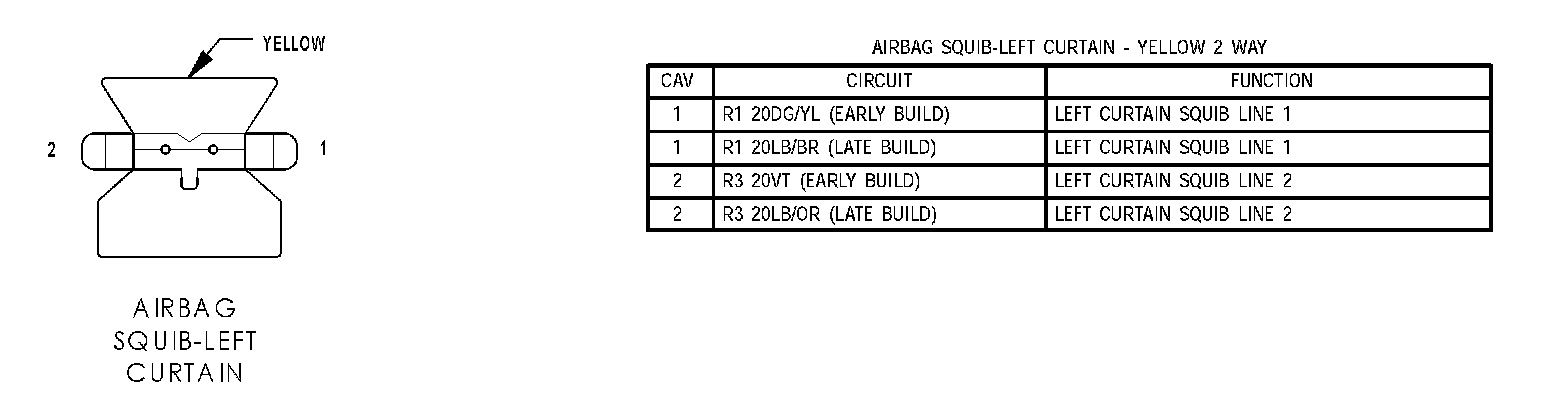

Air Bag Squib-Left Curtain:

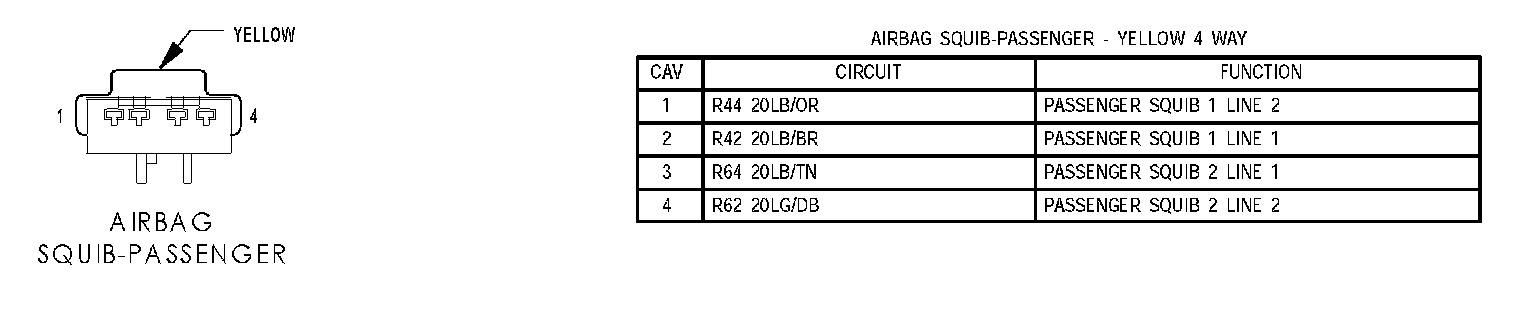

Air Bag Squib-Passenger:

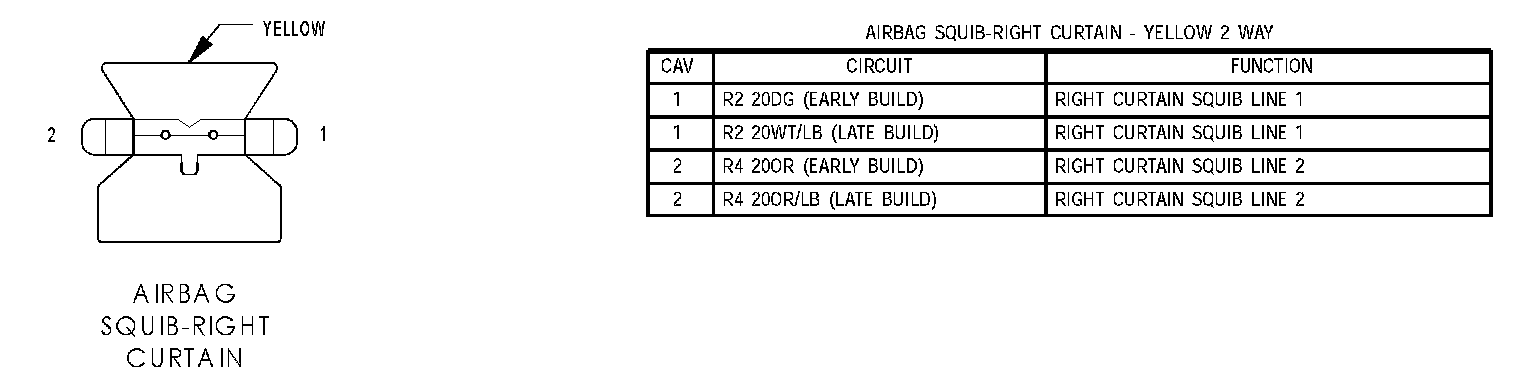

Air Bag Squib-Right Curtain:
