Power Door Lock Actuator

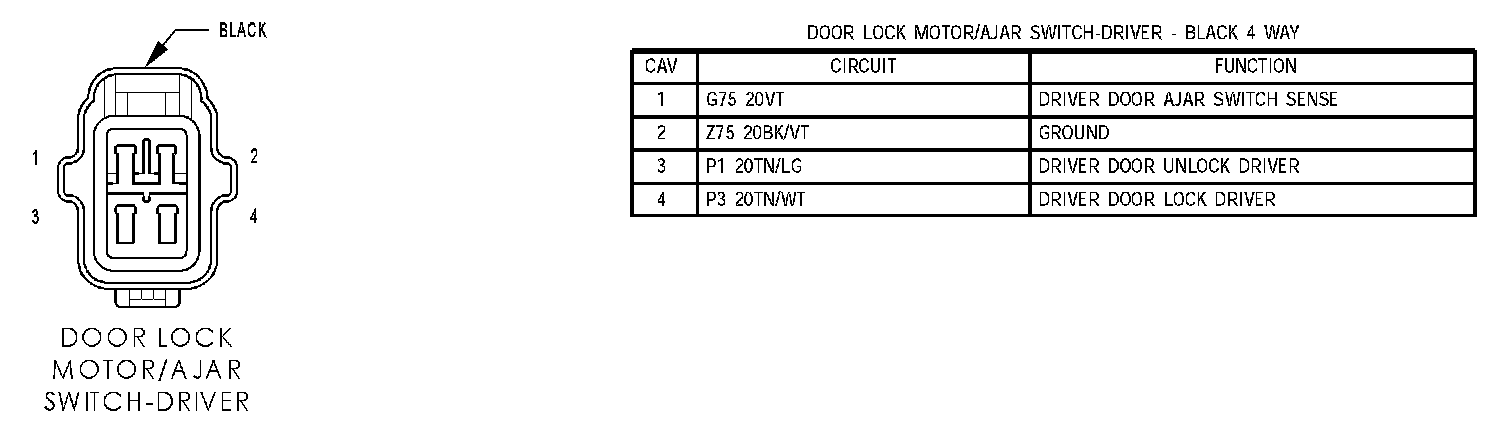

Door Lock Motor/Ajar Switch-Driver:

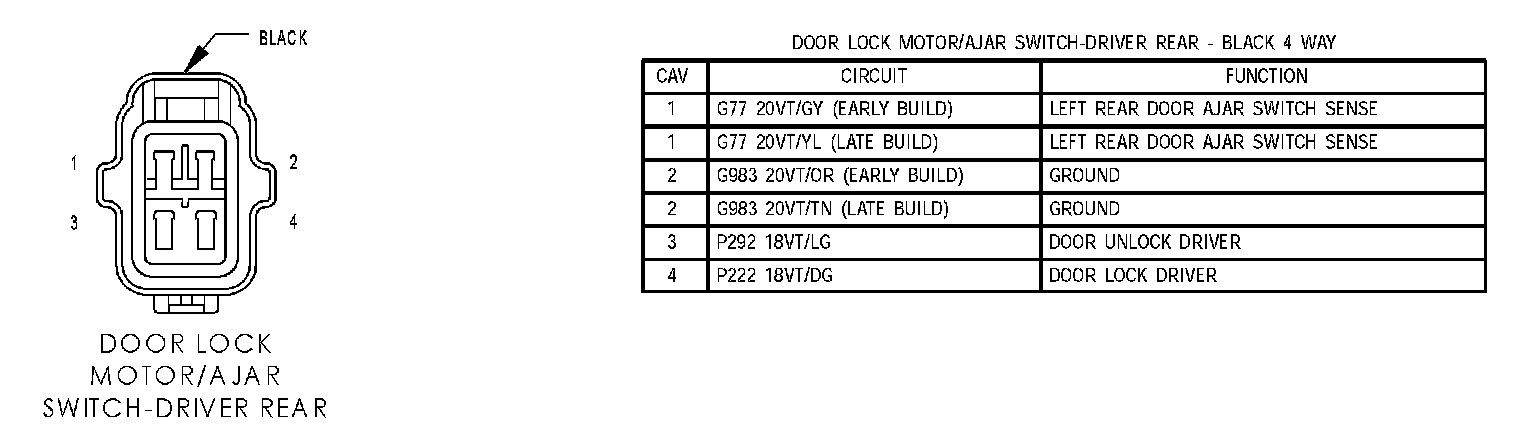

Door Lock Motor/Ajar Switch-Driver Rear:

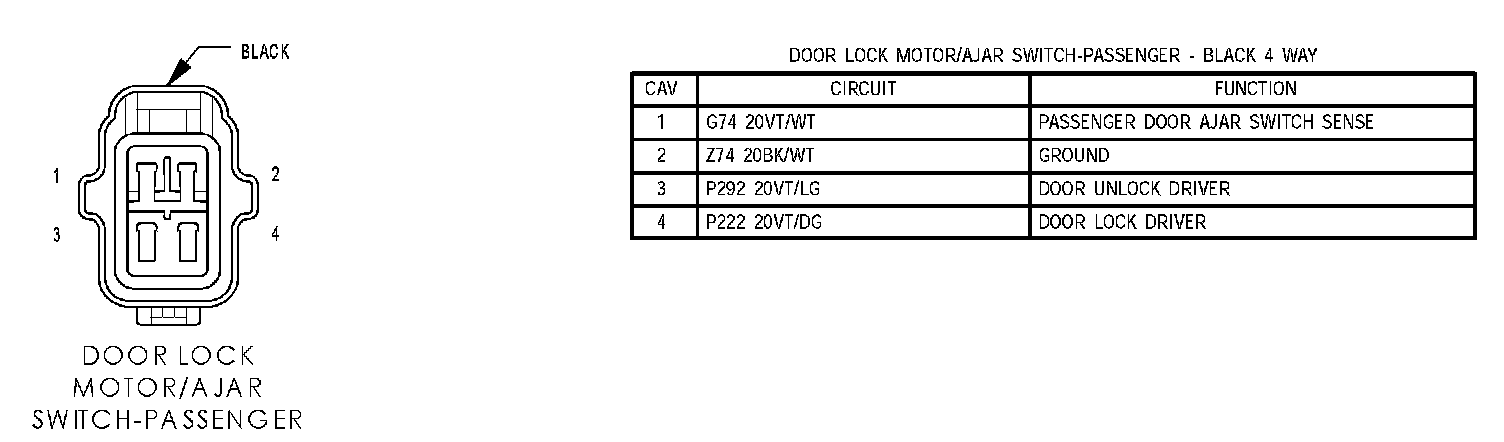

Door Lock Motor/Ajar Switch-Passenger:

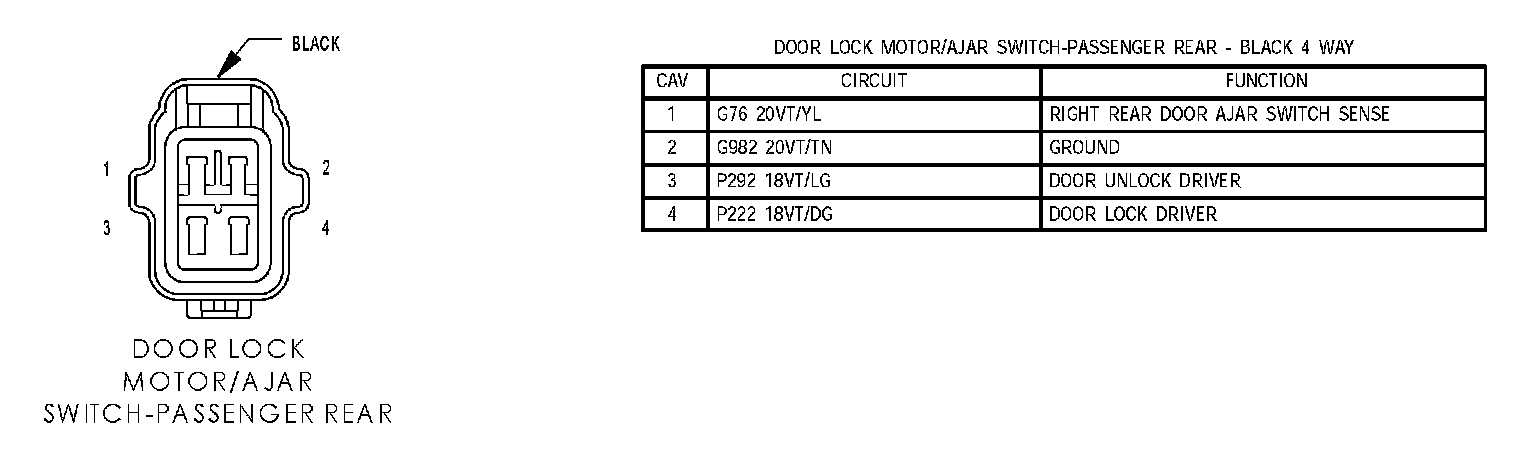

Door Lock Motor/Ajar Switch-Passenger Rear:
