Connector Views
>>
Radiator Cooling Fan
>>
System Diagram
System Diagram

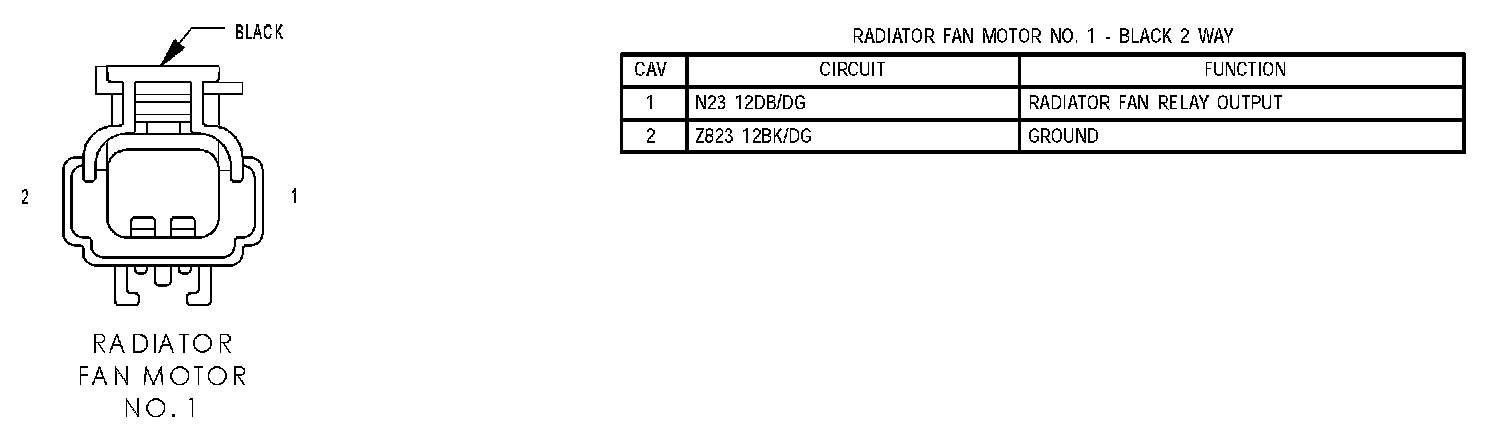

Radiator Fan Motor No.1:

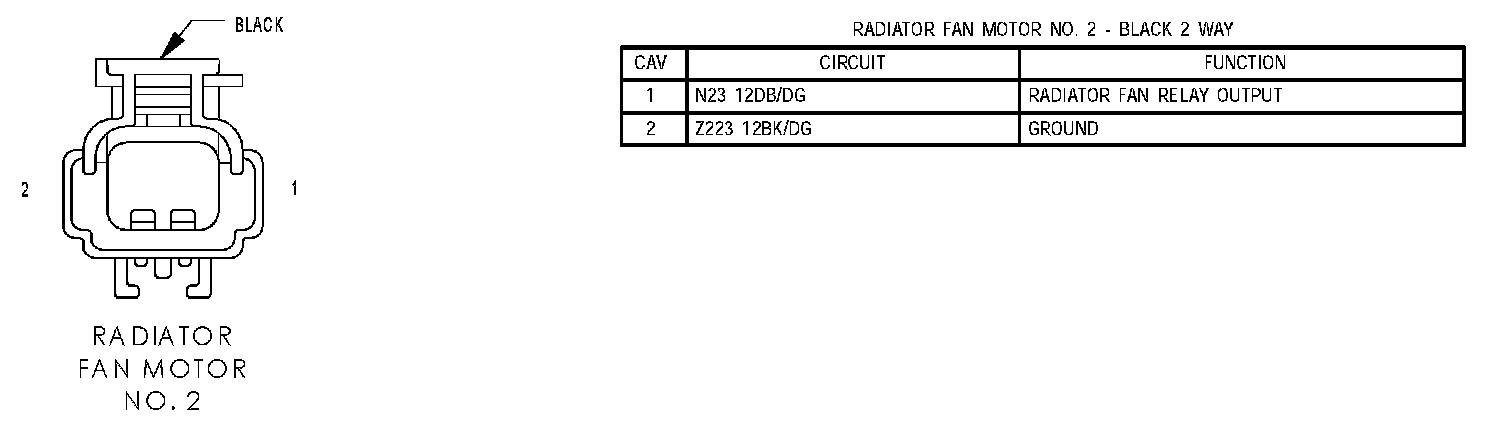

Radiator Fan Motor No.2:
