Radio Receiver

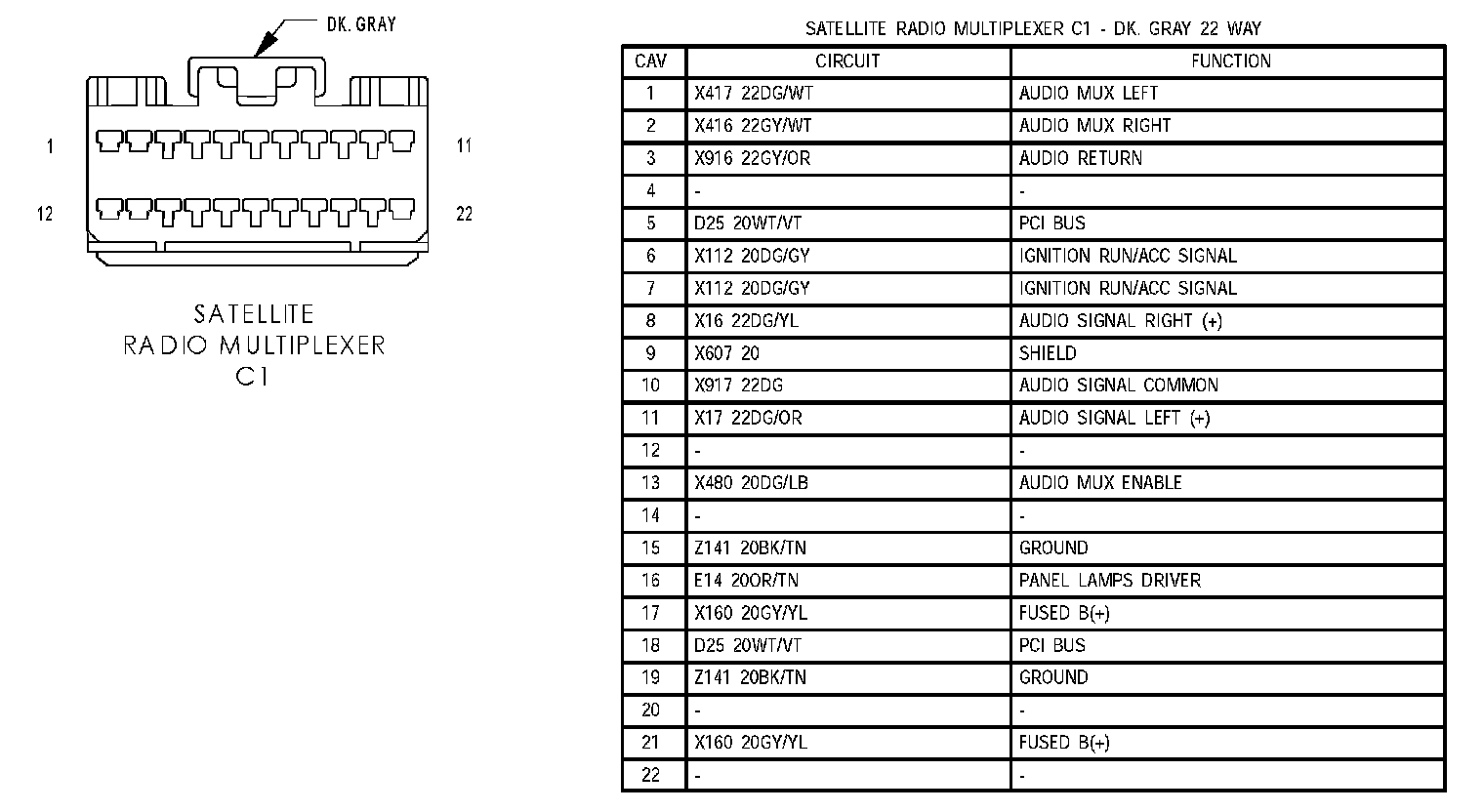

Satellite Radio Multiplexer C1:

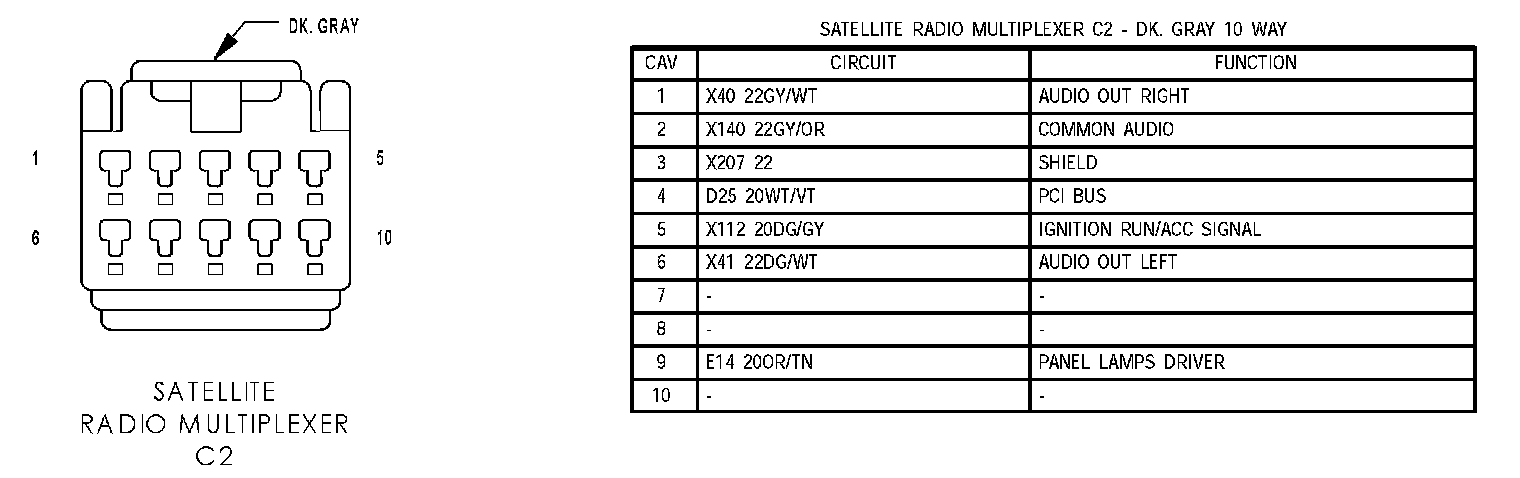

Satellite Radio Multiplexer C2:

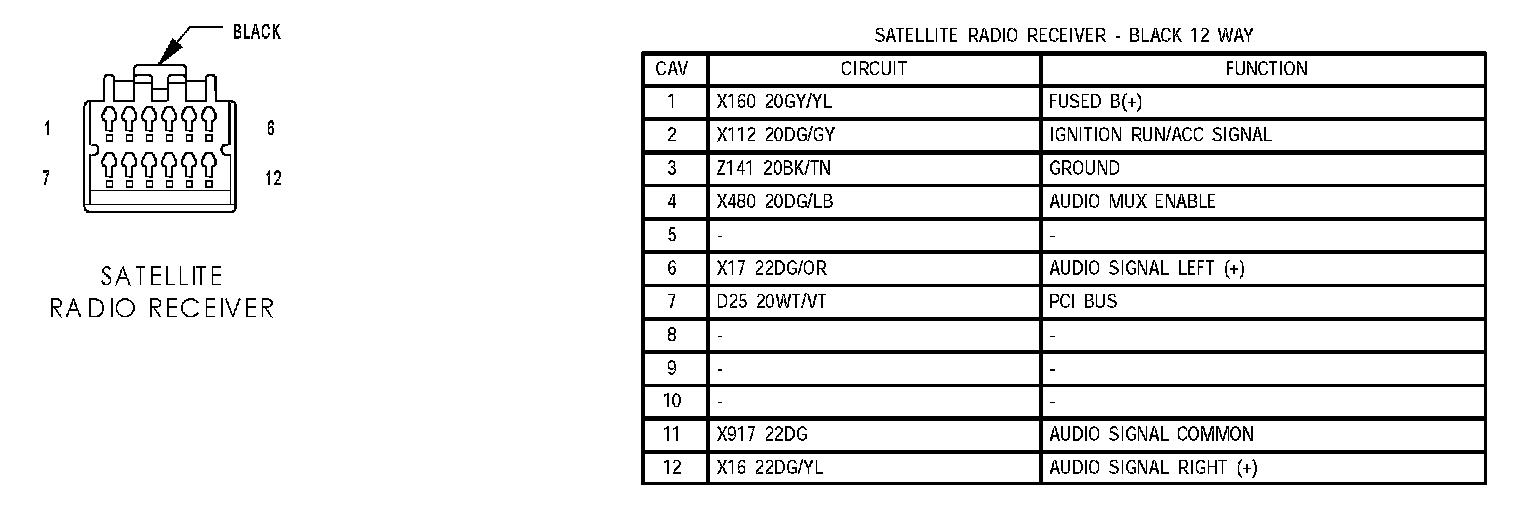

Satellite Radio Receiver:
