Front Blower Motor

REMOVAL

WARNING: ON VEHICLES EQUIPPED WITH AIRBAGS, DISABLE THE AIRBAG SYSTEM BEFORE ATTEMPTING ANY STEERING WHEEL, STEERING COLUMN, OR INSTRUMENT PANEL COMPONENT DIAGNOSIS OR SERVICE. DISCONNECT AND ISOLATE THE BATTERY NEGATIVE (GROUND) CABLE, THEN WAIT TWO MINUTES FOR THE AIRBAG SYSTEM CAPACITOR TO DISCHARGE BEFORE PERFORMING FURTHER DIAGNOSIS OR SERVICE. THIS IS THE ONLY SURE WAY TO DISABLE THE AIR-BAG SYSTEM. FAILURE TO TAKE THE PROPER PRECAUTIONS COULD RESULT IN AN ACCIDENTAL AIRBAG DEPLOYMENT AND POSSIBLE PERSONAL INJURY OR DEATH OR DEATH.

NOTE: The blower motor is located on the passenger side of the vehicle under the instrument panel. The blower motor can be removed from the vehicle without having to remove the HVAC housing.

1. Disconnect and isolate the negative battery cable.
2. Remove the passenger side cowl trim panel. Cowl Trim
3. Pull back the carpet to access the front upper screw that secures the air inlet housing.
4. Remove the recirculation door actuator. Recirculation Door Actuator Replacement
5. Remove the recirculation door actuator wire lead from the routing clip located on the lower air inlet housing and position the wire lead aside.
6. Disconnect the blower motor wire lead connector from the blower motor resistor or power module, depending on application.

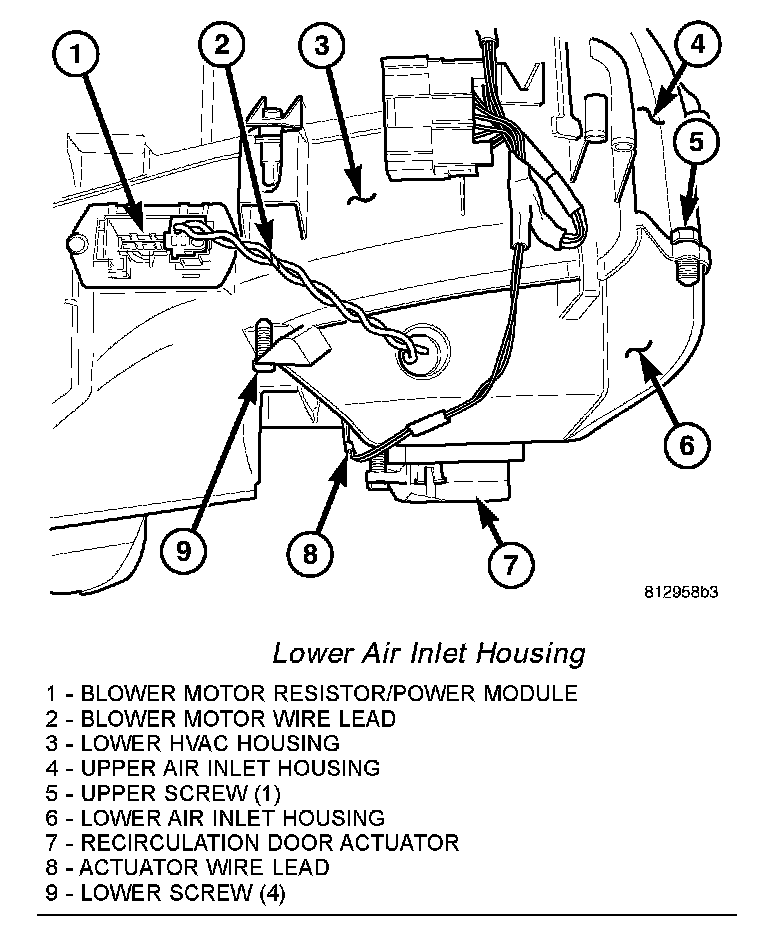

Lower Air Inlet Housing:

7. Remove the one screw (from the top) that secures the lower air inlet housing to the upper air inlet housing.
8. Remove the four screws (from the bottom) that secure the lower air inlet housing to the upper air inlet housing and remove the lower HVAC housing.

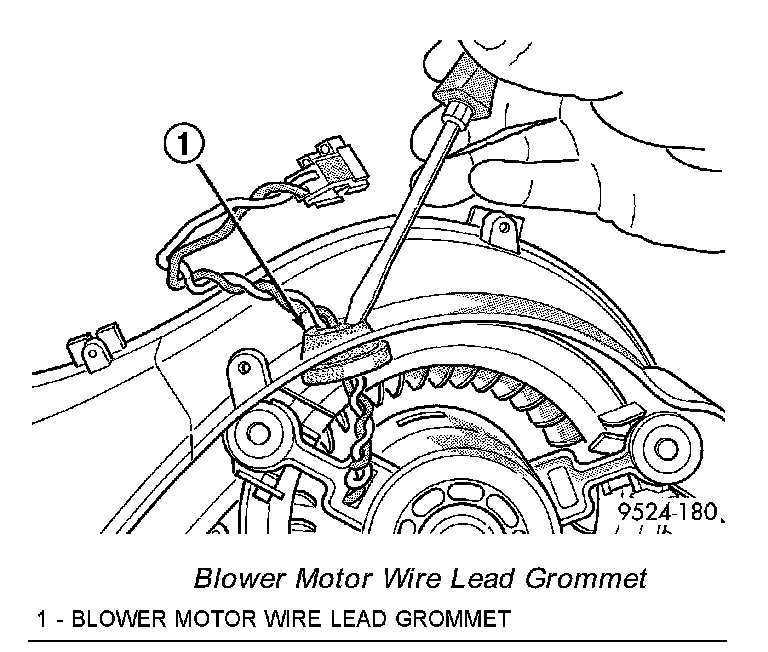

Blower Motor Wire Lead Grommet:

9. Push the rubber blower motor wire lead grommet through the opening in the lower air inlet housing.
10. Feed the blower motor wire lead through the opening in the lower air inlet housing and remove the lower air inlet housing from the vehicle.
11. Position the recirculation-air door as necessary to access and remove the three screws that secure the blower motor to the lower half of the HVAC housing.
12. Gently flex the recirculation air door far down enough to remove the blower motor and wheel from the HVAC housing.

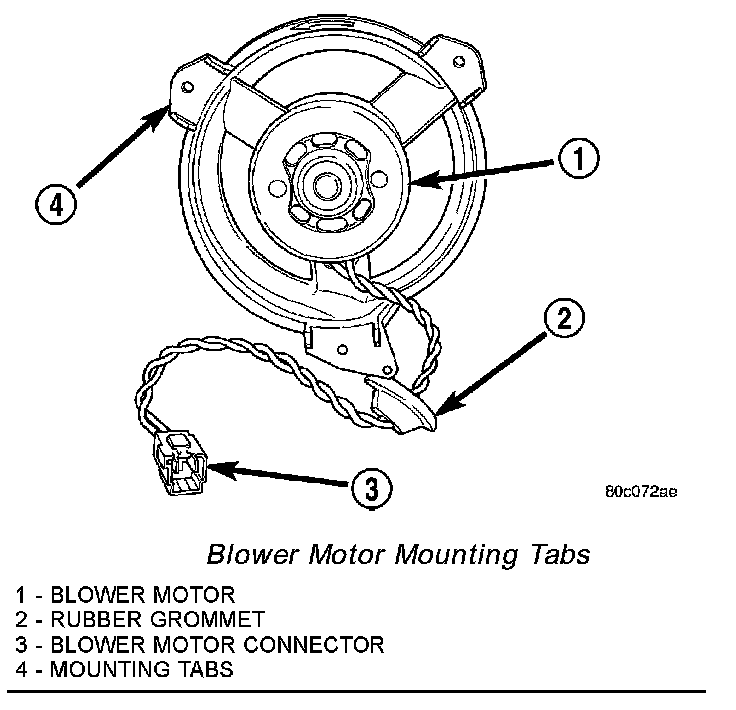

Blower Motor Mounting Tabs:

13. Remove the blower motor and wheel from the HVAC housing. Note the position of the blower motor mounting tabs.

INSTALLATION

1. Position the blower motor and wheel to the lower half of the HVAC housing. Align the blower motor mounting tabs to the correct location on the HVAC housing.
2. Gently flex the recirculation-air door far down enough to install the blower motor and wheel into the HVAC housing.
3. Position the recirculation-air door as necessary to install the three screws that secure the blower motor to the HVAC housing. Tighten the screws to 2 N.m (17 in. lbs.).
4. Feed the blower motor wire lead through the opening in the lower air inlet housing and seat the rubber grommet into the lower air inlet housing.
5. Position the recirculation-air door pivot into the lower air inlet housing.
6. Install the four screws (from the bottom) that secure the lower air inlet housing to the upper air inlet housing and the lower HVAC housing. Tighten the screws to 2 N.m (17 in. lbs.).
7. Install the one screw (from the top) that secures the lower air inlet housing to the upper air inlet housing. Tighten the screws to 2 N.m (17 in. lbs.).
8. Connect the blower motor wire lead connector to the blower motor resistor or power module, depending on application.
9. Install the recirculation door actuator. Recirculation Door Actuator Replacement
10. Install the recirculation door actuator wire lead into the routing clip located on the lower air inlet housing.
11. Reinstall the carpet.
12. Install the passenger side cowl trim panel.
13. Reconnect the negative battery cable.
14. Perform the heater-A/C control calibration procedure. A/C-Heater Control Calibration
