Floor Distribution Ducts Replacement




REMOVAL

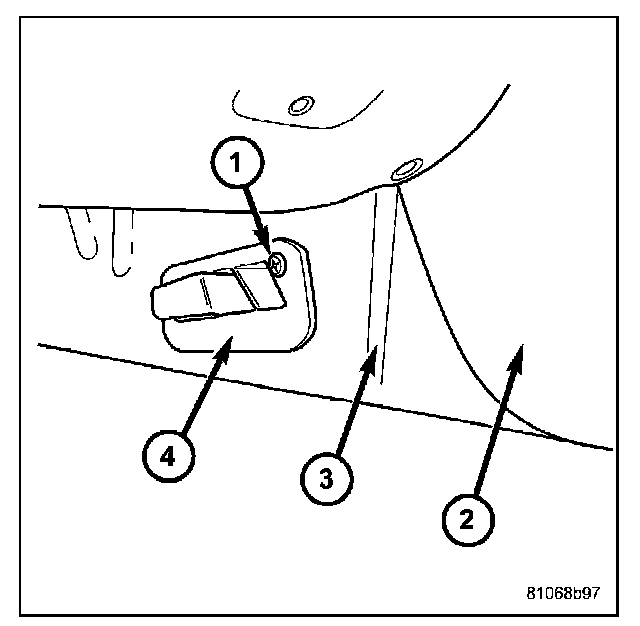

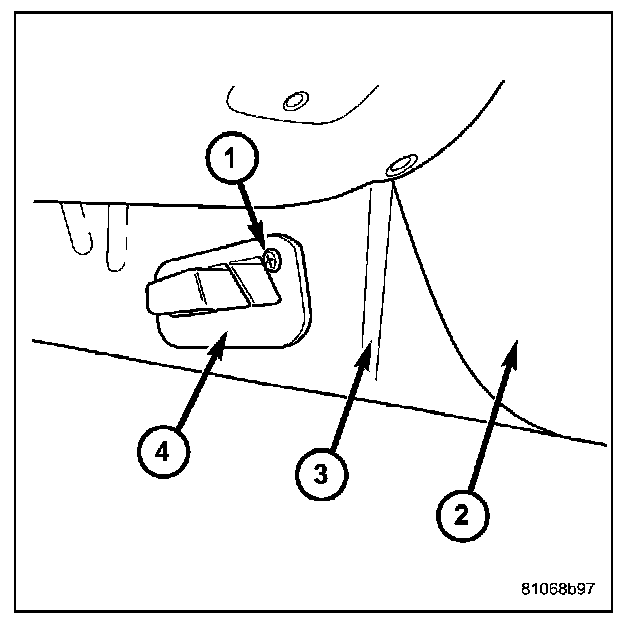

1. Turn the screw 90° (1) on the vent (4) to the left and remove the front cover (3) away from the rear portion (2).

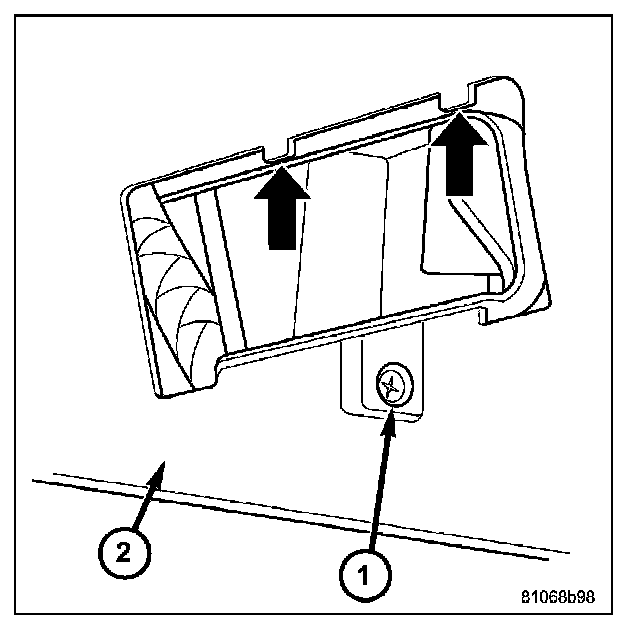

2. Remove the screw (1) attaching the footwell air outlet cover to the center console (2).

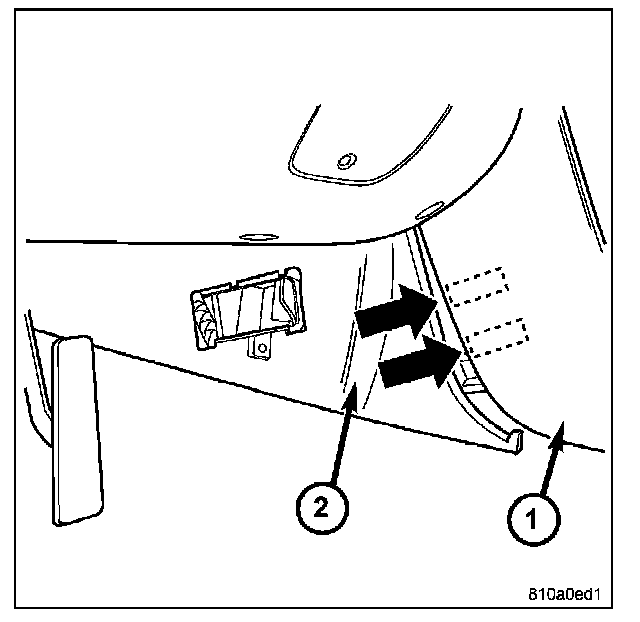

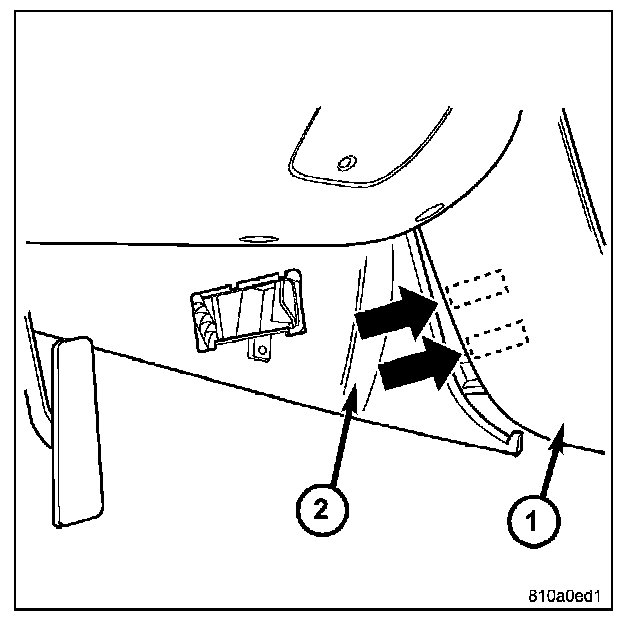

3. Slide the panel (2) forward to release the hooks and then remove from the center console (1).

INSTALLATION




1. Install the cover by sliding the panel rearward




2. Install the screw attaching the footwell air outlet cover to the center console.




3. Install the cover then turn the screw 90� to the right.
