Front

REMOVAL




1. Disconnect the negative battery cable.

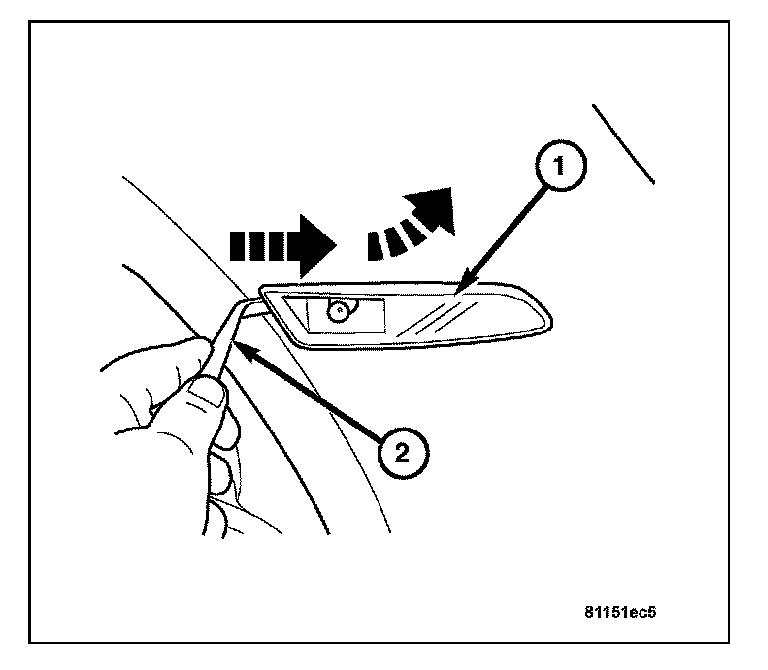

2. Insert a trim stick (2) at the rear edge of the front marker lamp lens (1), gently depress forward and lift out from the fascia.
3. Rotate the socket counterclockwise and remove the front marker lamp bulb from the socket.

INSTALLATION

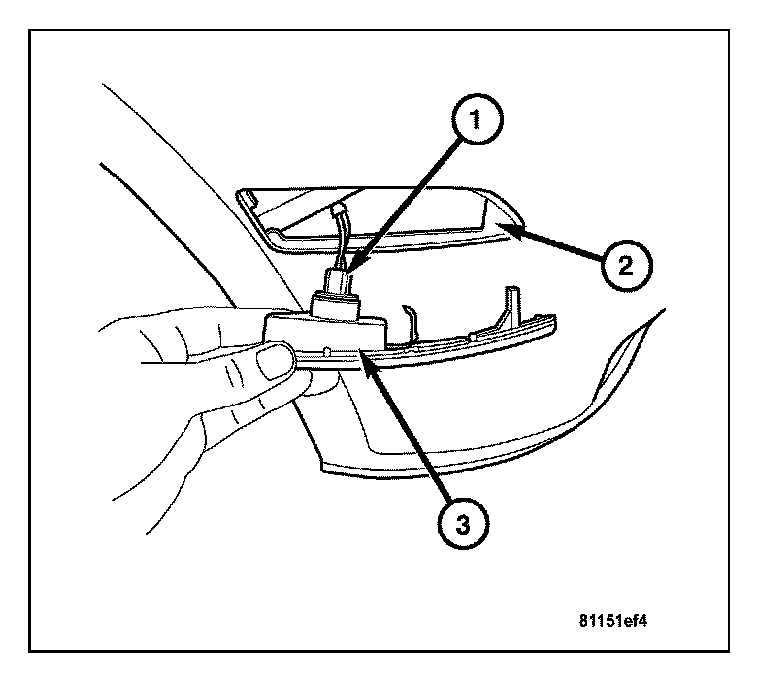

1. Insert the front marker bulb into the socket (1) and rotate clockwise into the front marker lamp lens (3).
2. Install the forward edge of the front marker lamp lens first into the fascia (2), then press the rear edge in at the back.
3. Connect the negative battery cable.
