Drive Belt: Service and Repair
DRIVE BELTREMOVAL
1. Remove the engine cover (1). Grasp both corners of the engine cover, and pull up firmly.

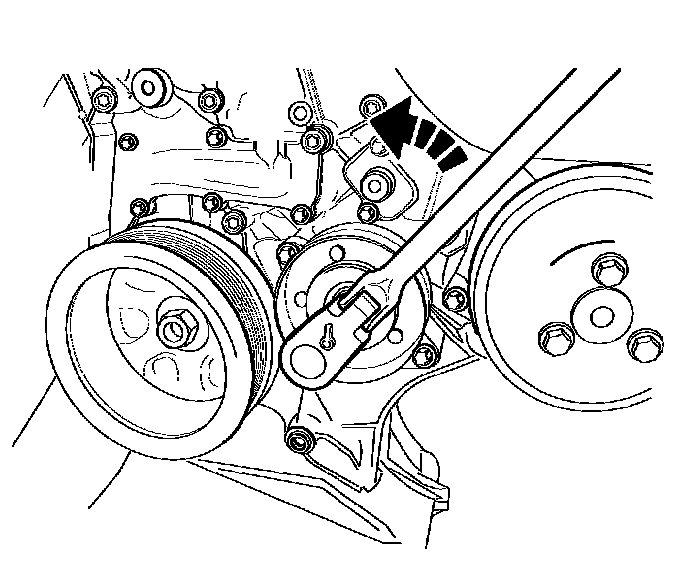

2. Rotate the belt tensioner counterclockwise and release the tension on the accessory drive belt.

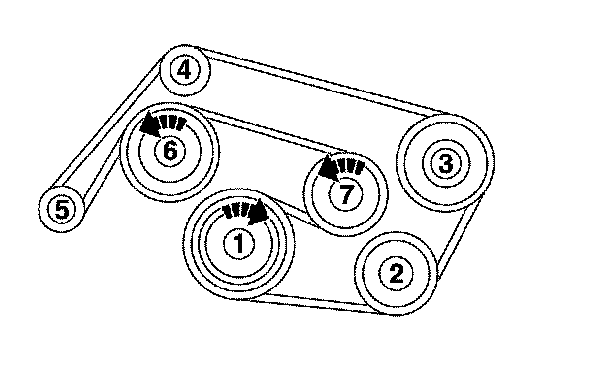

3. Remove the accessory drive belt from the pulleys.
4. Carefully release the wrench tension on the belt tensioner.
5. Inspect the accessory drive belt. Refer to damage patterns.
6. Inspect the pulleys for wear or damage.
7. Replace the accessory drive belt or pulleys as necessary.
INSPECTION
Belt replacement is necessary for any or all of the following conditions:
^ Excessive wear
^ Frayed cords
^ Severe glazing The accessory drive belt may develop minor cracks across the ribbed side (1) due to reverse bending. These minor cracks are considered normal and acceptable. Parallel cracks (2) are not considered normal and should be cause for belt replacement.
Note: Do not use any type of belt dressing or restorer on the accessory drive belt.
INSTALLATION
1. Route the accessory drive belt onto the engine pulleys.

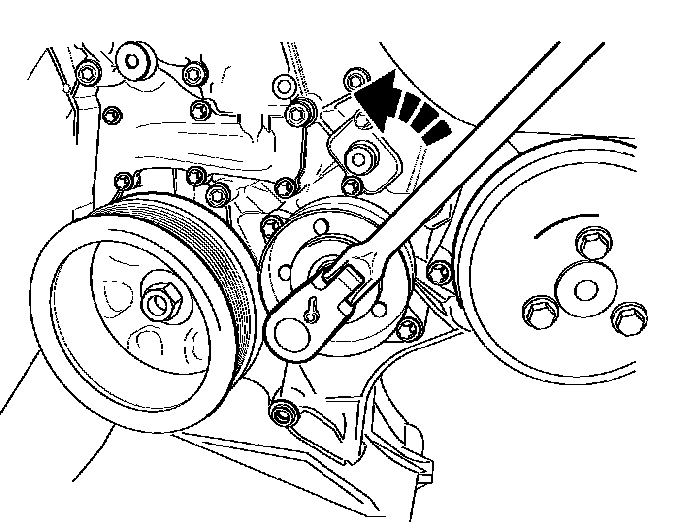

2. Rotate the belt tensioner counterclockwise and install the accessory drive belt over the tensioner pulley.
3. Release the belt tensioner and remove the wrench.
4. Install the engine cover (1). Align the engine cover retaining clips to the rubber mounts, and push down firmly to connect engine cover to rubber mounts.
Note: To ease the installation of the engine cover, apply a small amount of lubricant to the engine cover rubber mounts.
5. Start the engine and verify the accessory drive belt is properly routed and seated.
