Air Cleaner Housing: Service and Repair

AIR CLEANER HOUSING
REMOVAL

Note: The engine cover is held in place by four rubber grommets and four spring clips.

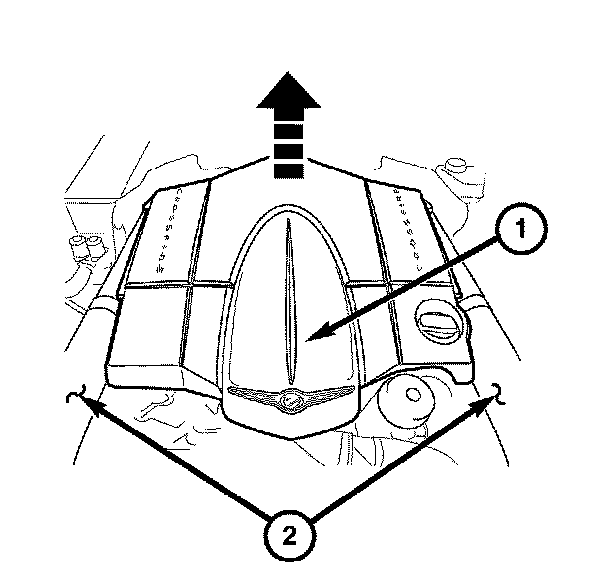

1. Remove the air inlet tubes (2).
2. Grasp both rear corners of the engine cover, and pull up firmly. Lift the engine cover (1) from the rear first, then from the front.

INSTALLATION





1. Install the engine cover (1). Align the engine cover retaining clips to the rubber mounts, and push down firmly to connect engine cover to rubber mounts.

Note: To ease the installation of the engine cover, apply a small amount of lubricant to the engine cover rubber mounts.

2. Install the air inlet tubes (2).
