Cruise Control Servo: Service and Repair

REMOVAL
1. Remove the air cleaner lid, and makeup air hose.
2. Remove the negative battery cable.

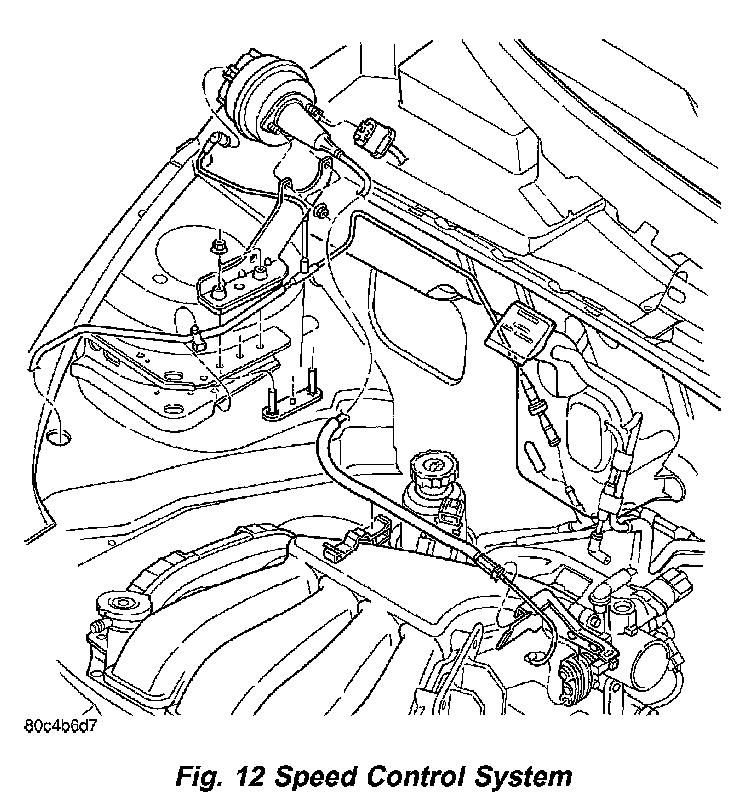

Fig. 12 Speed Control System:





3. Remove two nuts attaching speed control cable and mounting bracket to servo.
4. Remove servo from the mounting bracket.
5. Disconnect electrical connectors and vacuum hose.
6. Remove the engine cover.
7. Remove cable from throttle cam. Refer to Speed Control Servo Cable Removal/Installation in this section.
8. Remove the 2 push nuts and discard.

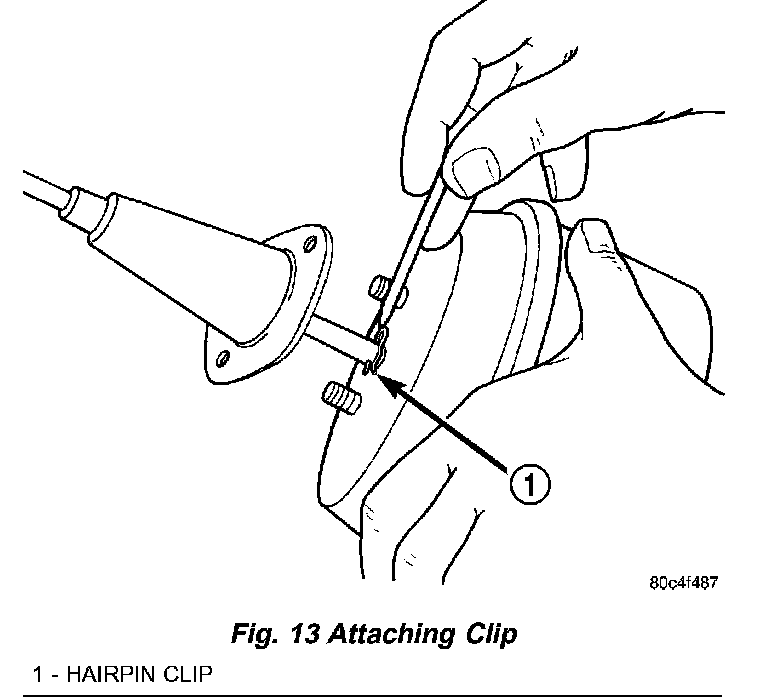

Fig. 13 Attaching Clip:





9. Remove clip attaching cable to servo.

INSTALLATION
1. Install hairpin clip to servo and cable.
2. Install servo studs through cable bell and then the bracket.
3. Install nuts, tighten to 7 Nm (60 in. lbs.).
4. Install speed control cable to throttle cam. Refer to Speed Control Servo Cable Removal/Installation in this section.
5. Connect electrical connector.
6. Connect the vacuum hose to servo.
7. Install the engine cover.
8. Install the negative battery cable.
9. Install the air cleaner lid, and makeup air hose.
