System Specifications

Timing Belt Tensioner-Bolts 28 Nm (250 inch lbs.)
Timing Belt Tensioner Pulley Assembly-Bolt 61 Nm (45 ft. lbs.)





Timing Belt Cover
-M6 Bolts 12 Nm (105 inch lbs.)
-M8 Bolts 28 Nm (250 inch lbs.)
-M10 Bolts 54 Nm (40 ft. lbs.)

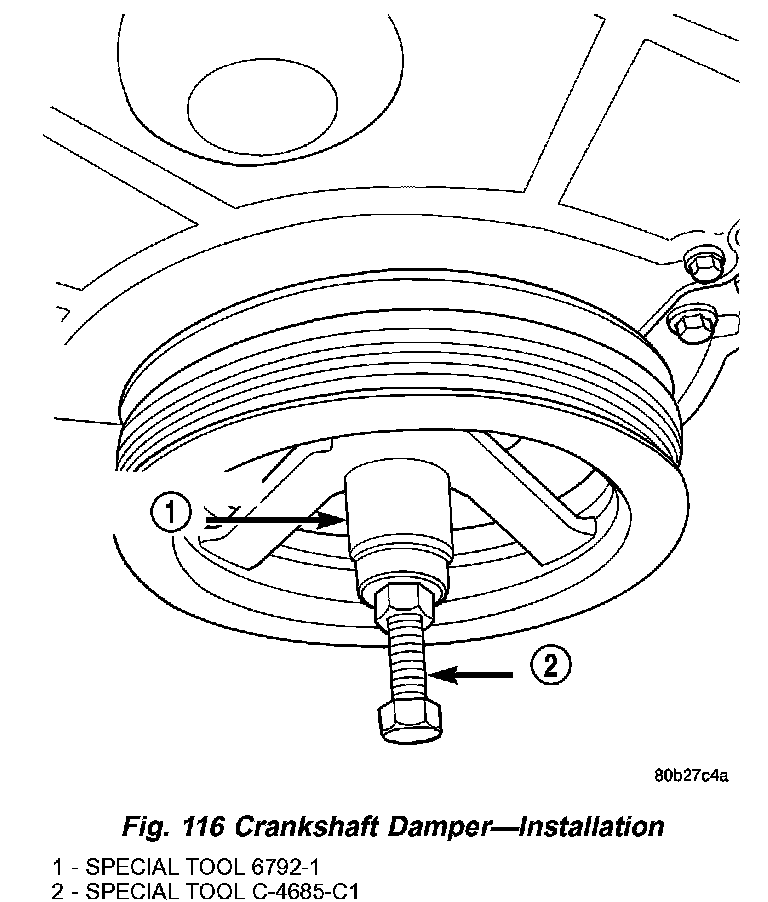

Install crankshaft damper using Special Tools C-4685-C1 (5.9 inch) Bolt, with Nut and Thrust Bearing from 6792, and 6792-1 Installer (Fig. 116).
Install vibration damper bolt.
Torque bolt to 95 Nm (70 ft. lbs.).
