Radiator Closure Panel

RADIATOR CLOSURE PANEL

REMOVAL

1. Open hood.
2. Remove four push pins attaching radiator closure panel to radiator crossmember.

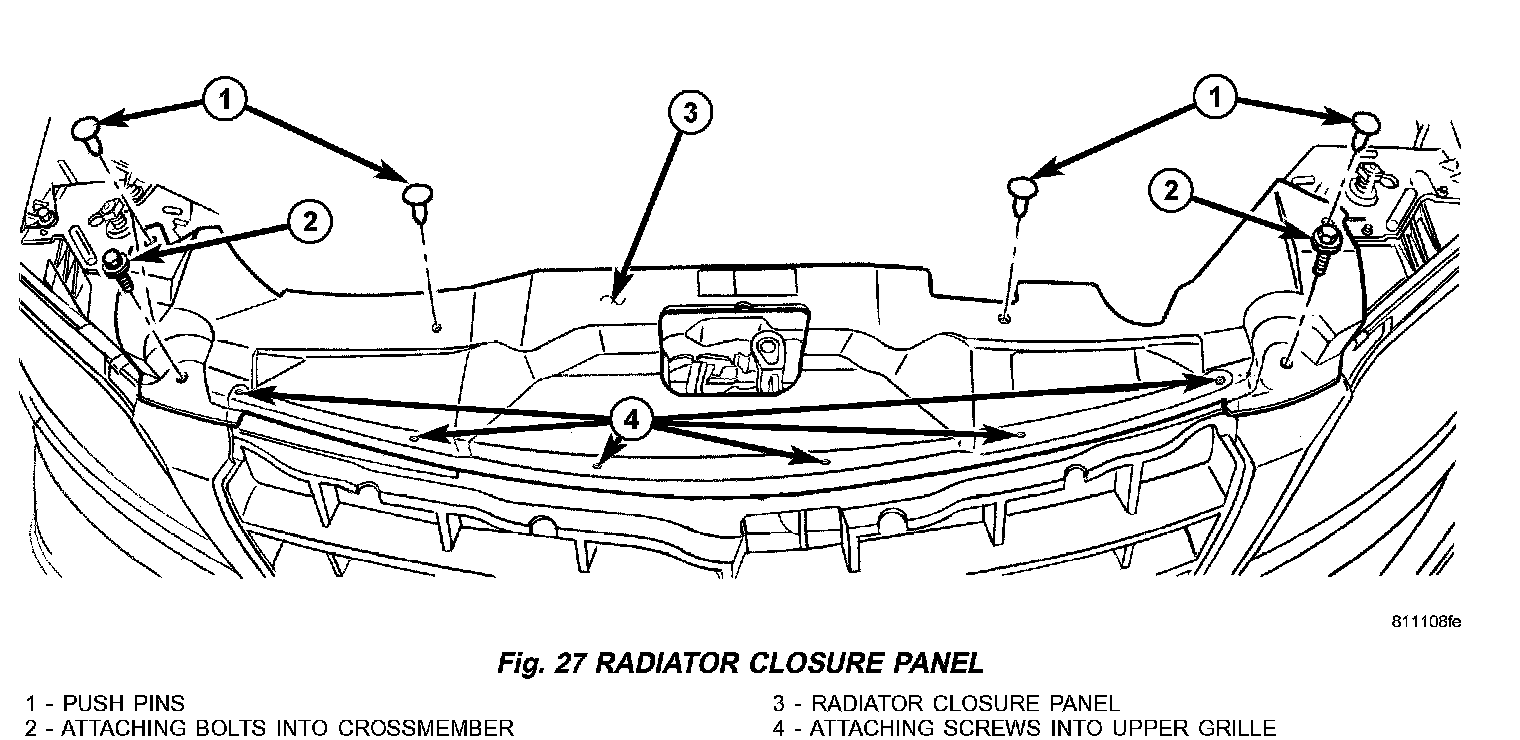

Fig. 27:

3. Remove one bolt on each side attaching to radiator crossmember (Fig. 27).
4. Remove six screws attaching radiator closure to the upper grille.
5. Remove radiator closure panel from vehicle.

INSTALLATION

1. Place radiator closure panel into position.
2. Install one bolt on each side attaching to radiator crossmember (Fig. 27).
3. Install four push pins attaching radiator closure panel to radiator crossmember.
4. Install six screws attaching radiator closure to the upper grille.
5. Close hood.
