Splash Guard: Service and Repair

ACCESSORY DRIVE SPLASH SHIELD

REMOVAL

1. Hoist and support vehicle on safety stands, as necessary.
2. Move front wheel as necessary to access the splash shield.

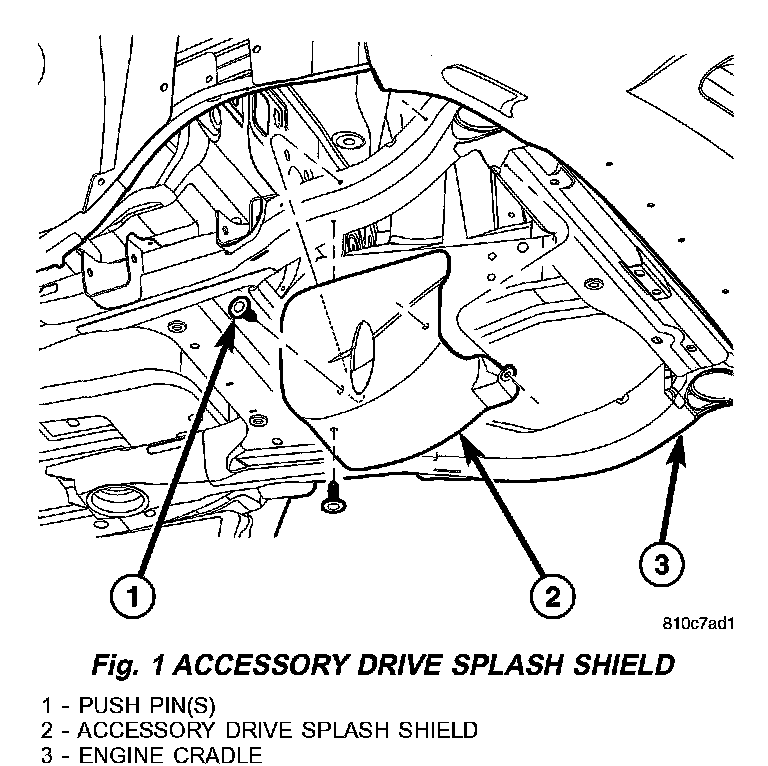

Fig. 1:

3. Remove four push pins attaching accessory drive splash shield to engine cradle (Fig. 1).
4. Remove accessory drive splash shield from vehicle.

INSTALLATION

1. Place accessory drive splash shield into position.
2. Install new push pins attaching accessory drive splash shield to engine cradle (Fig. 1).
3. Move front wheels straight ahead.
4. Remove safety stands and lower vehicle, as necessary.
