A/C Compressor Mount

REMOVAL
1. Remove A/C compressor from the compressor mounting bracket and support the compressor.

NOTE: It is not necessary to remove A/C compressor from vehicle to remove bracket from engine.

2. Raise and support the vehicle.
3. Remove the underside compressor splash shield push pins and the splash shield.

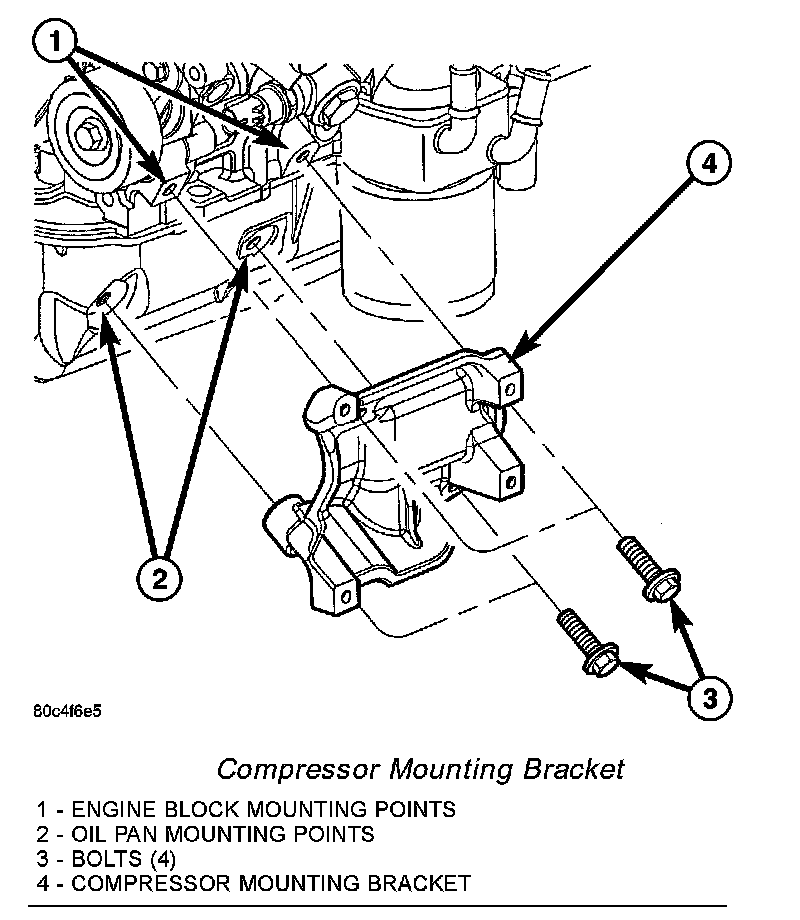

Compressor Mounting Bracket:

4. Remove four bolts that secure the compressor mounting bracket to the engine and remove the bracket.

INSTALLATION
1. Position the compressor mounting bracket to the engine.
2. Install the four bolts that secure the compressor mounting bracket to the engine. Tighten the bolts to 115 N.m (85 ft. lbs.).
3. Position the A/C compressor onto the compressor mounting bracket and support the compressor.
4. Install the underside compressor splash shield and the push-pin retainers.
5. Lower the vehicle.
6. Install the A/C compressor onto the compressor mounting bracket.
