Front Reading Lamp Replacement

REMOVAL
1. Open hood, disconnect and isolate the battery negative cable.
2. Open door.

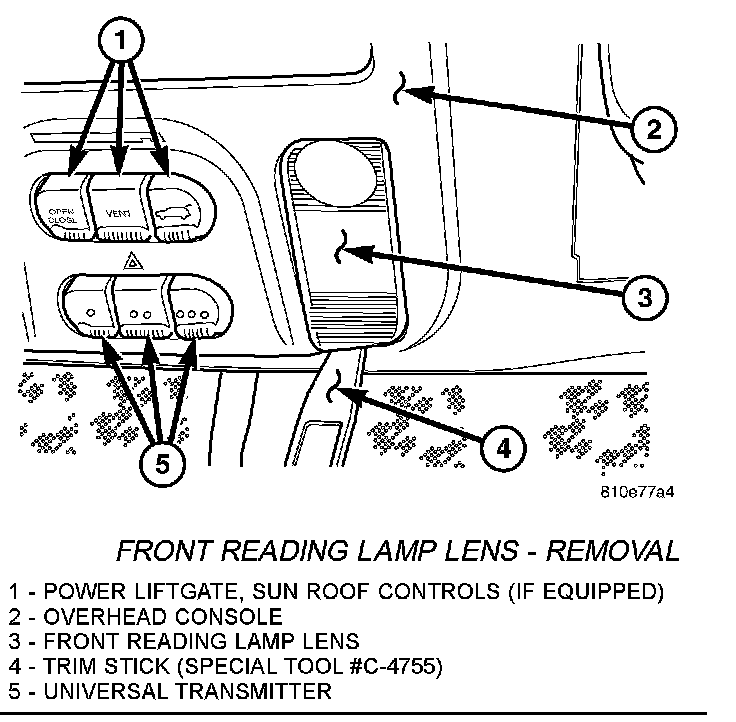

Front Reading Lamp Lens -removal:

3. Using a trim stick (special tool #4755) or equivalent, gently pry out from the bottom of the lamp lens to remove.
4. Gently pry up on the edge of the lamp and pull out of the overhead console to remove.

INSTALLATION
1. Place lamp over retaining clips in overhead console retaining clips and firmly snap into place.
2. Place the front reading lamp lens over the retaining pins making sure that they are lined up and them firmly snap into place.
3. Connect the battery negative cable.
4. Close hood.
5. Verify vehicle and system operation.
6. Close front door.
