Air Temperature Sensor ( Ambient / Intake ): Service and Repair
REMOVAL 1.
Disconnect the negative battery cable.

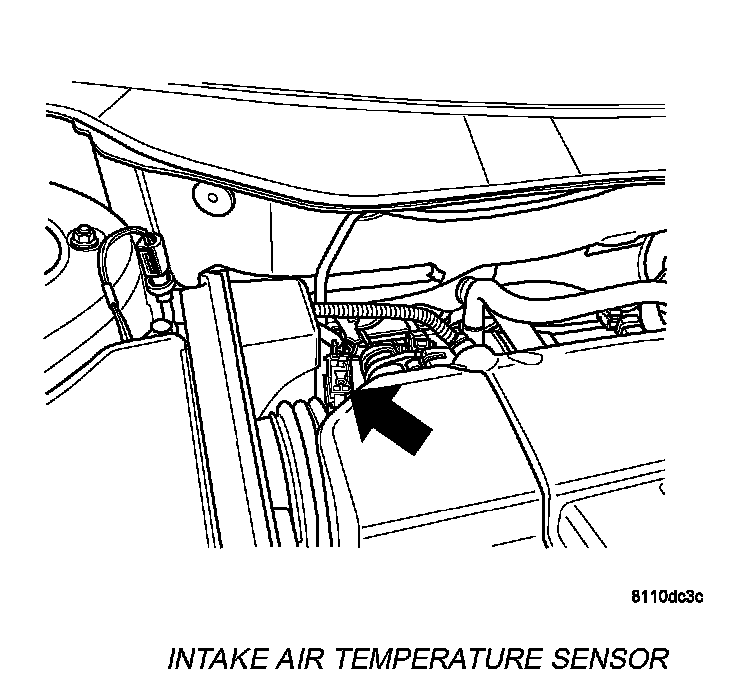

Intake Air Temperature Sensor:
2.
Unlock and disconnect the electrical connector.
3.
remove sensor from hose.
INSTALLATION 1.
Install sensor into inlet hose.
2.
Connect and lock the electrical connector.
3.
Connect the negative battery cable.
