Battery Temperature Sensor: Service and Repair

REMOVAL
1. Disconnect and isolate the battery negative cable then the positive cable.
2. Remove battery from battery tray.

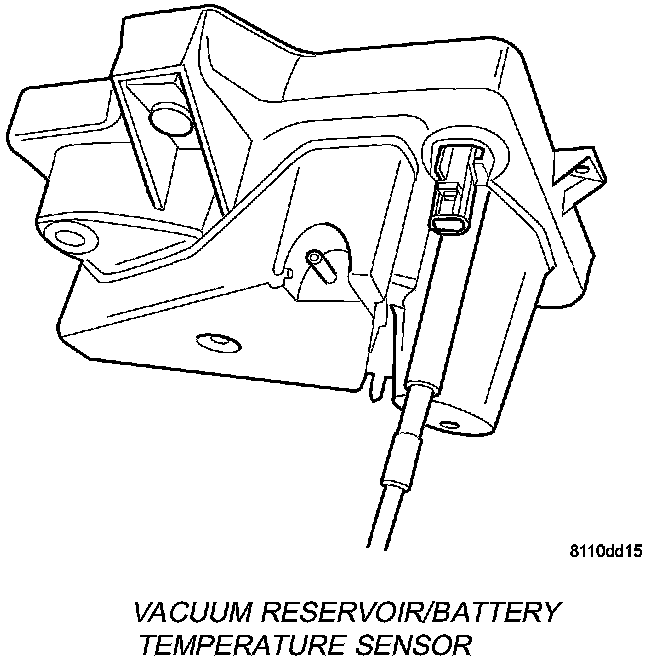

Vacuum Reservoir/Battery Temperature Sensor:




3. Disconnect the Battery Temperature Sensor electrical connector.

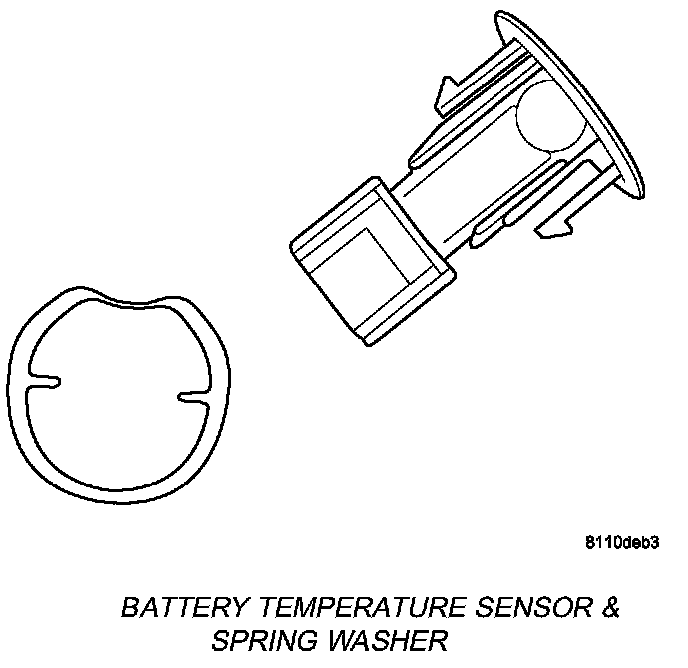

Battery Temperature Sensor And Spring Washer:




4. Unsnap the Battery Temperature Sensor from the battery tray and remove the sensor by pushing in the snap fits and pushing up out of tray.

INSTALLATION

Battery Temperature Sensor And Spring Washer:




1. Install the Battery Temperature Sensor to the battery tray. Make sure that the spring is installed with the sensor.

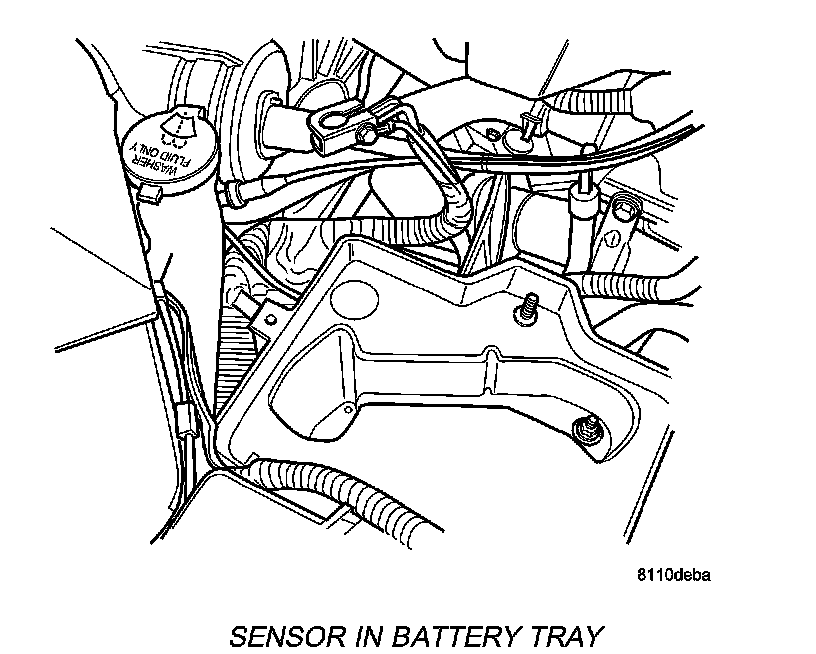

Sensor In Battery Tray:




2. Connect the Battery Temperature Sensor electrical connector.
3. Make sure that the sensor moves vertically in the battery tray by pushing on the sensor. The sensor should move with each push and return to the original location after pressure is removed.
4. Install battery to battery tray.
5. Connect the battery positive cable then the negative cable.
