Manifold Pressure/Vacuum Sensor: Service and Repair

REMOVAL
1. Disconnect negative battery cable.

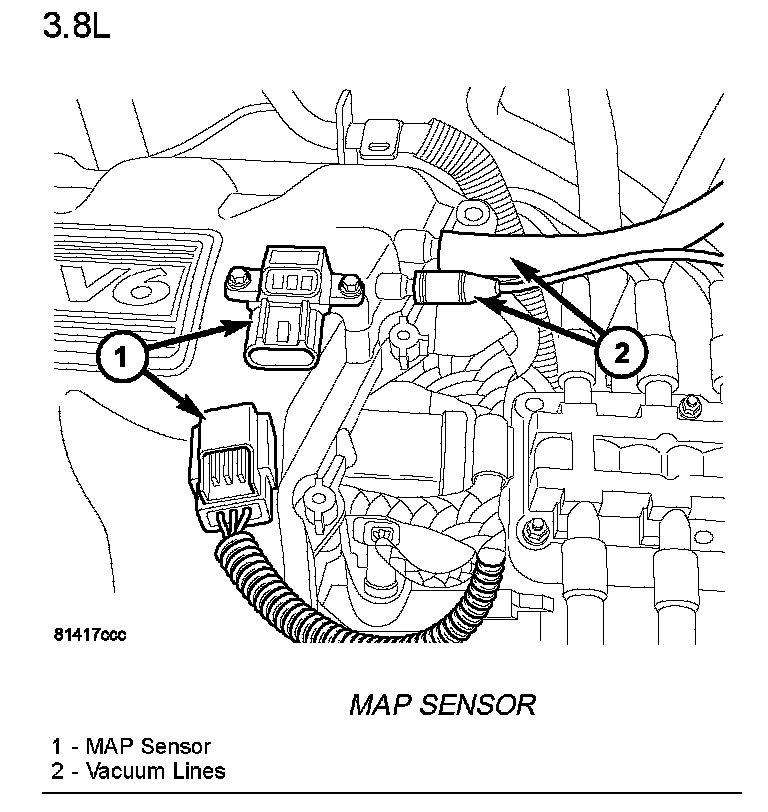

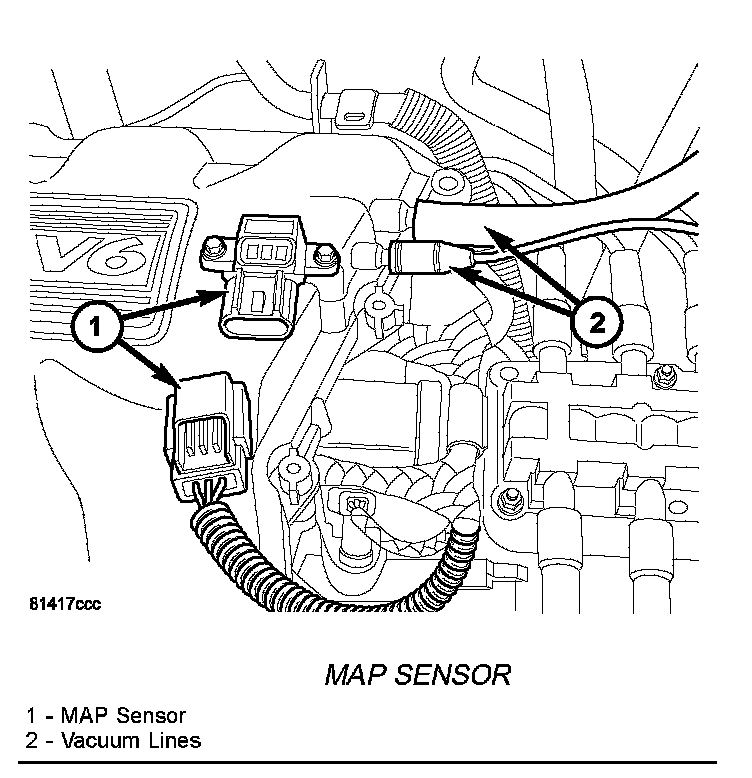

MAP Sensor:




2. Unlock and disconnect electrical connector.
3. Remove 2 mounting screws.
4. Remove sensor.

INSTALLATION
When servicing components, always reassemble components with new O-rings and seals where applicable. If assembly of component is difficult, a light coat of engine oil may be applied to the O-RINGS ONLY to aid assembly.

MAP Sensor:




1. Install MAP sensor.
2. Install and tighten screws.
3. Connect and lock electrical connector.
4. Connect negative battery cable.
