Leak Detection Pump: Service and Repair

REMOVAL
1. Disconnect the negative battery cable.
2. Raise vehicle and support.

EVAP Canister And NVLD:




3. Unlock and disconnect the electrical connector.
4. Remove clamps and remove hoses.

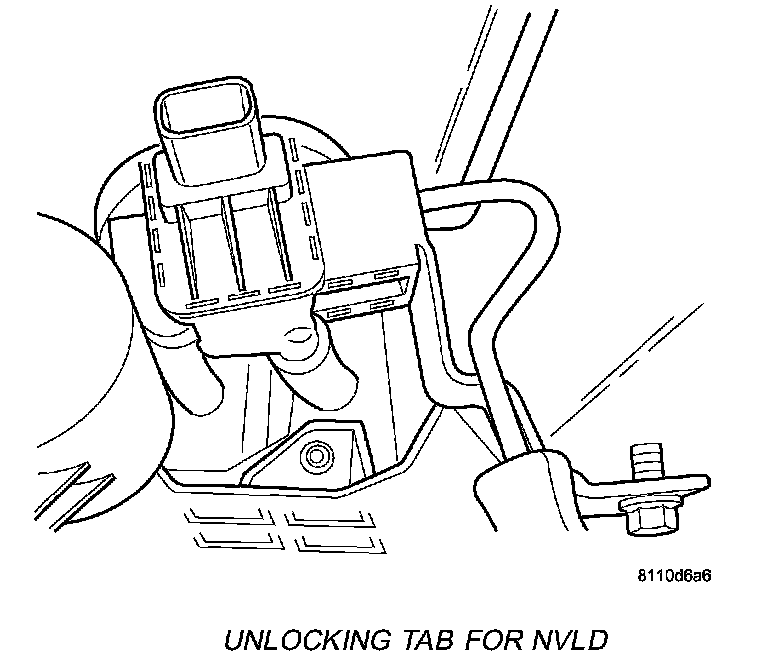

Unlocking Tab For NVLD:

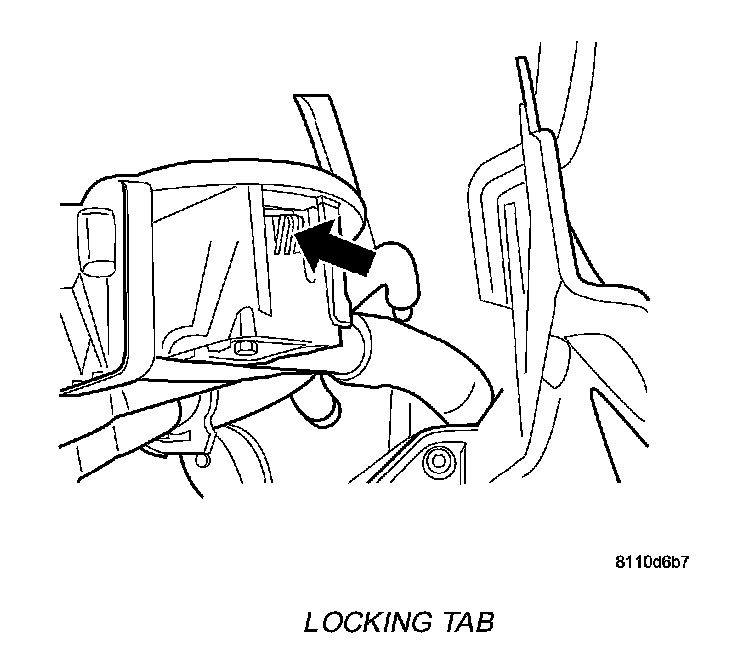

Locking Tab:




5. Press tab and release Natural Vacuum Leak Detection pump.

INSTALLATION

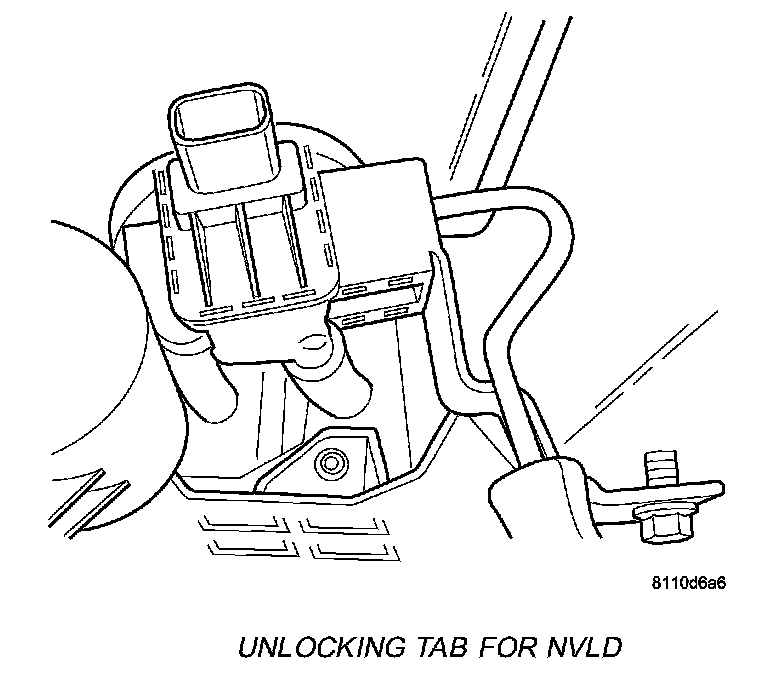

Unlocking Tab For NVLD:

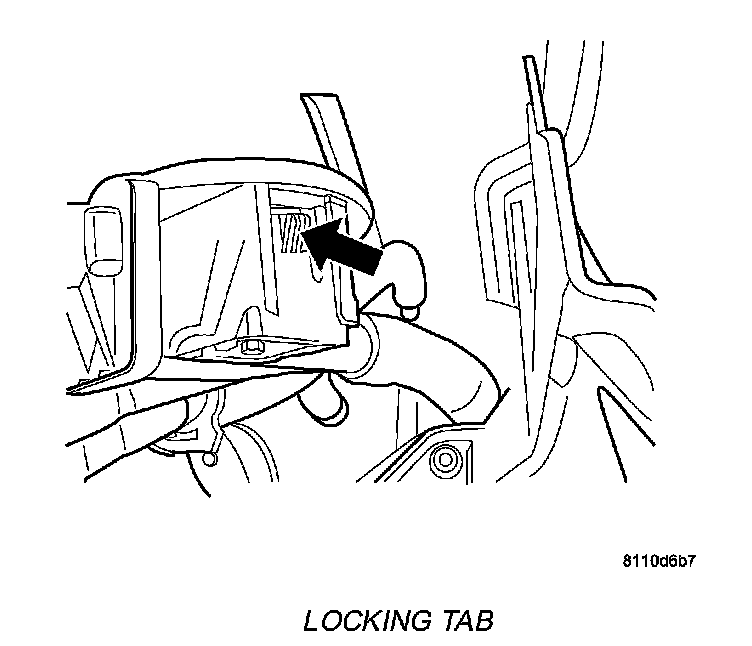

Locking Tab:




1. Slide the Natural Vacuum Leak Detection pump onto the bracket and make sure that the tab locks into the bracket.

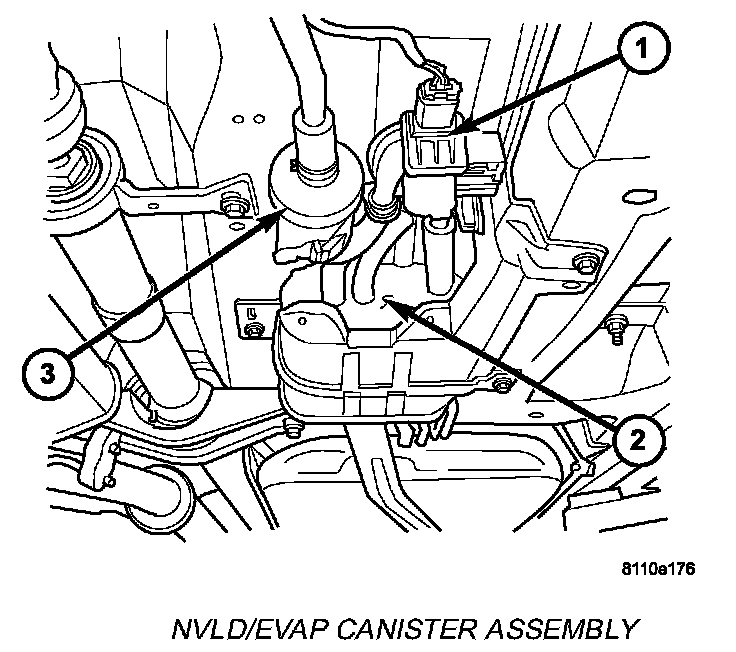

NVLD/EVAP Canister Assembly:




2. Install hoses and clamps.
3. Connect the electrical connector and lock.
4. Lower vehicle.
5. Connect the negative battery cable.
