EGR Valve: Service and Repair

REMOVAL
1. Disconnect negative battery cable.

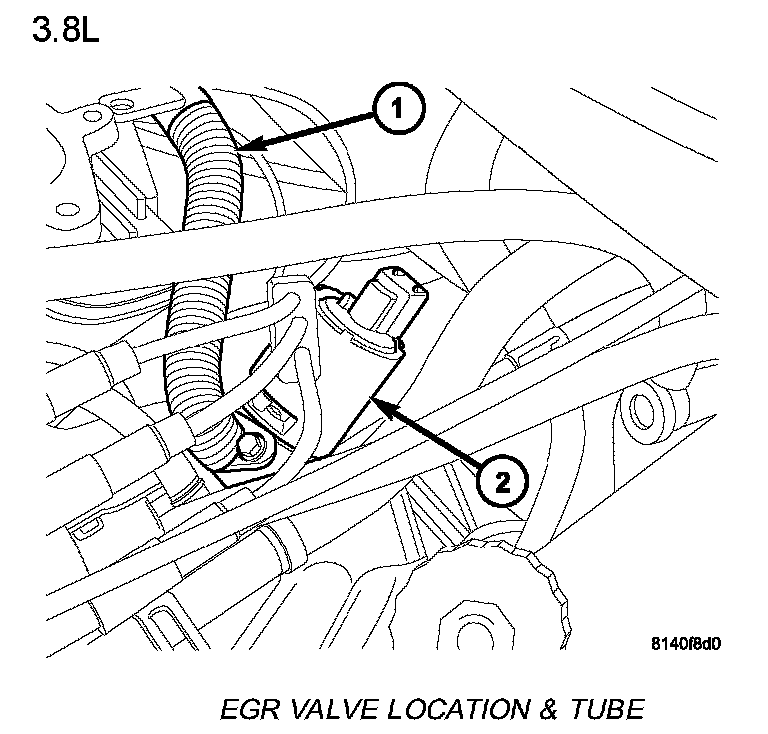

EGR Valve Location & Tube:




2. Unlock and disconnect the electrical connector from the EGR valve.

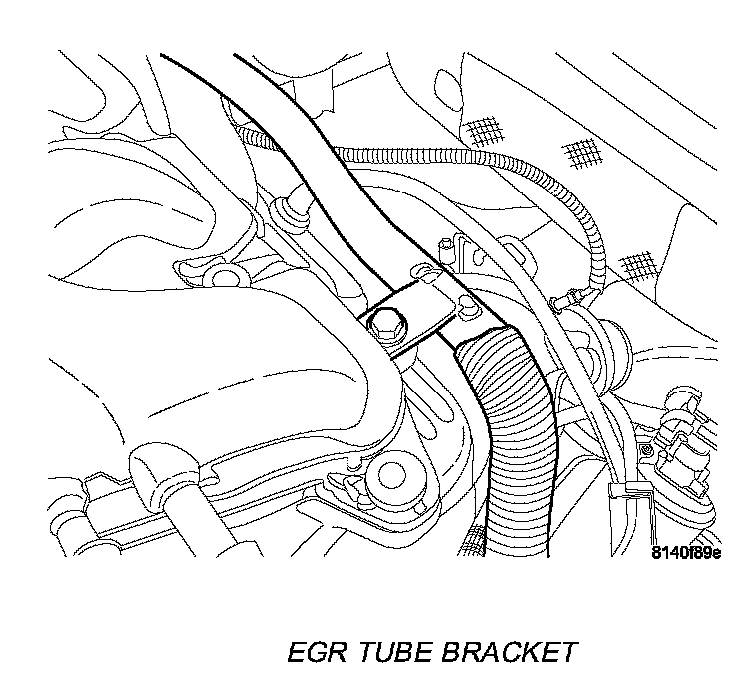

EGR Tube Bracket:




3. Remove EGR tube bracket bolt.

EGR Valve Mounted:




4. Remove the 2 EGR tube bolts.

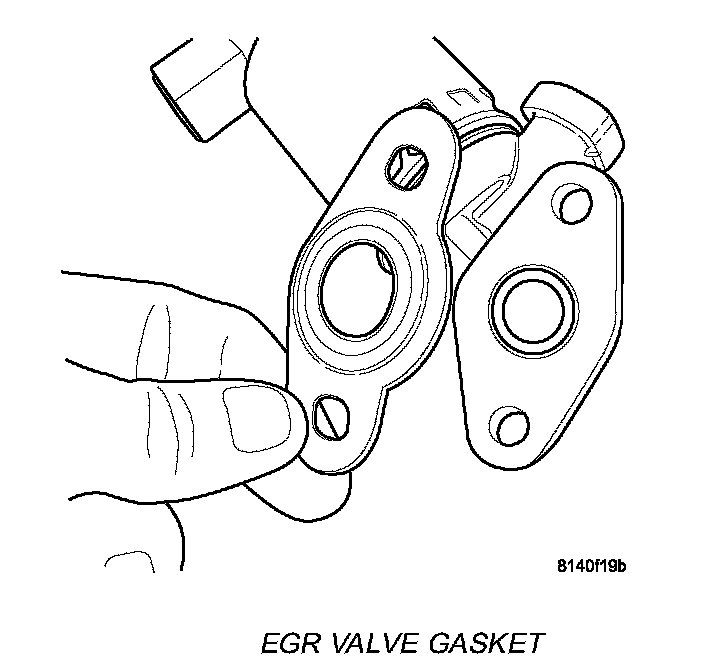

EGR Valve Gasket:




5. Remove the 2 mounting bolts for the EGR valve and gasket.

INSTALLATION

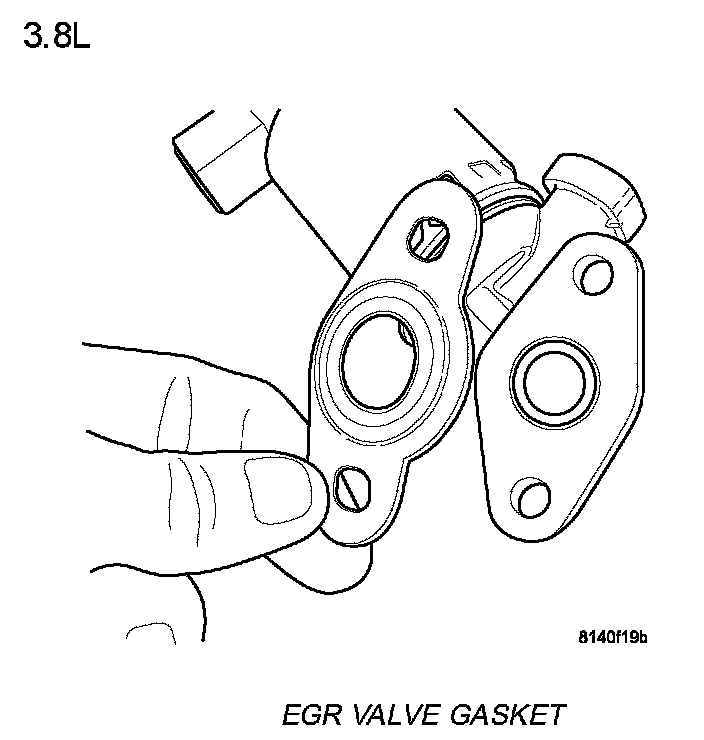

EGR Valve Gasket:




1. Install the 2 mounting bolts into the EGR valve and gasket.

EGR Valve Mounted:




2. Loose install the EGR valve to cylinder head.
3. Loose install the EGR tube to EGR valve.

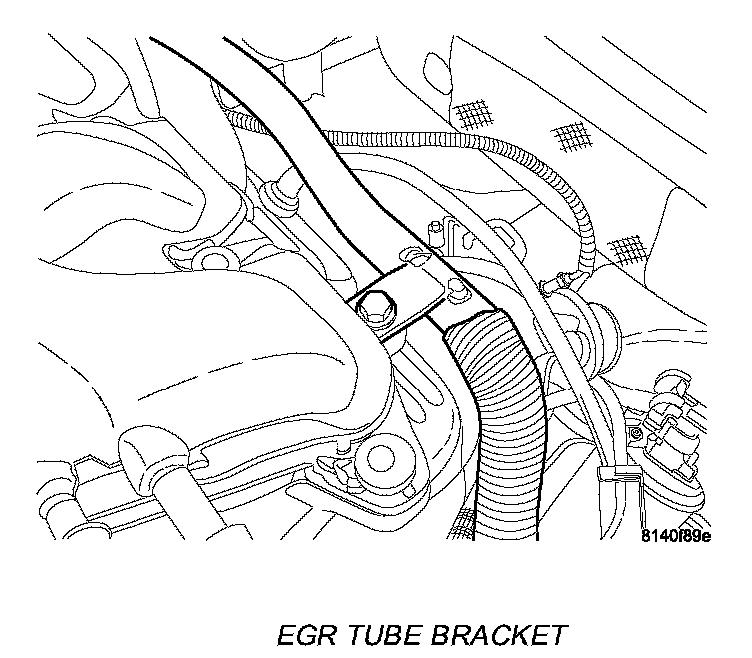

EGR Tube Bracket:




4. Install and tighten EGR tube bracket bolt.
5. Tighten the EGR tube to EGR valve bolts to 11.3 N.m (100 in. lbs.) torque.

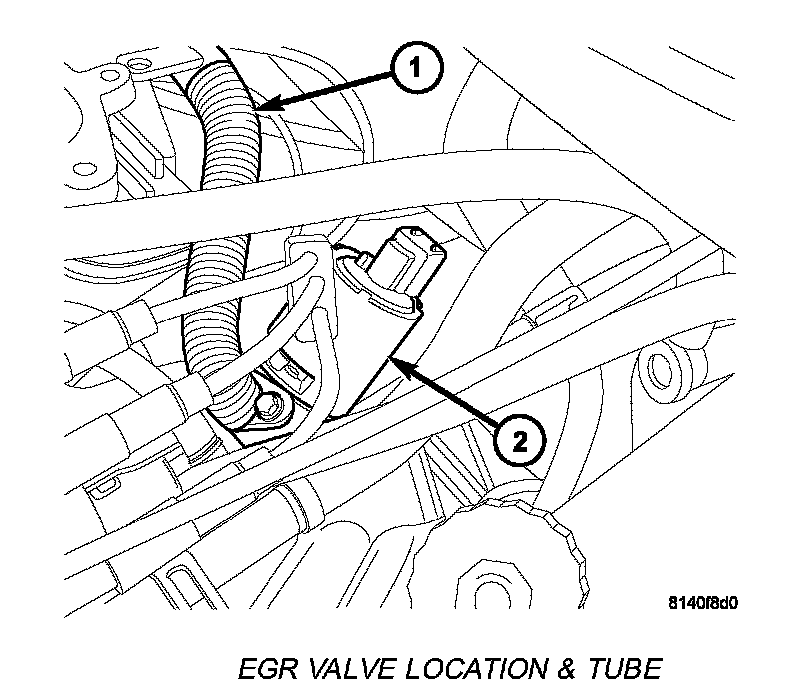

EGR Valve Location & Tube:




6. Connect and lock the electrical connector for the EGR valve.
7. Install the battery.
8. Connect the positive then the negative battery cable.
