Window Track: Service and Repair

DOOR FIXED GLASS RUN CHANNEL

REMOVAL

1. Lower door window glass.
2. Remove door trim panel.
3. Remove watershield as necessary. Refer to Rear Door Panel.
4. Remove inner belt weatherstrip.
5. Remove screws attaching outer belt molding, one at the inside of the rear door shut face at the B-pillar and one at the inside of the rear door shut face at the C-pillar.

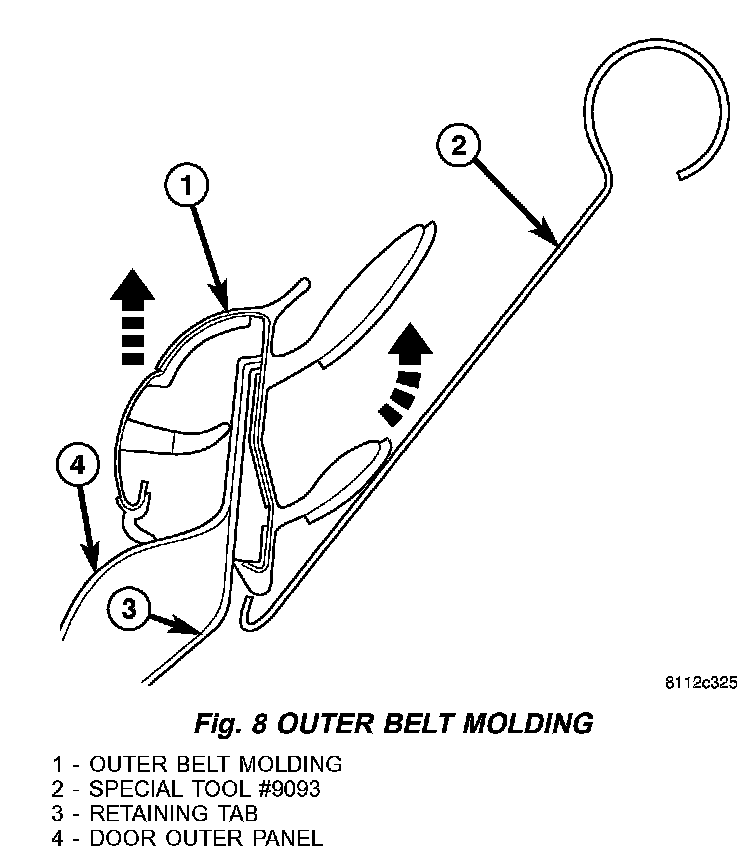

Fig. 8:

6. Remove outer belt molding using special tool 9093 (Fig. 8).

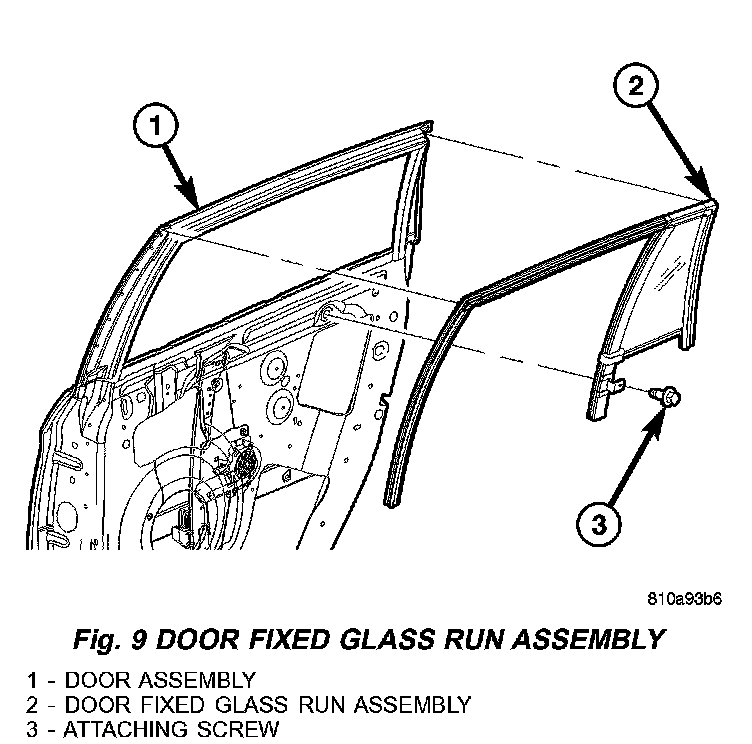

Fig. 9:

7. Remove screw attaching glass run to door panel (Fig. 9).
8. Using a trim stick C-4755 or equivalent and hand pull down on glass run disengage from window frame channel.
9. Remove fixed glass run channel from door.

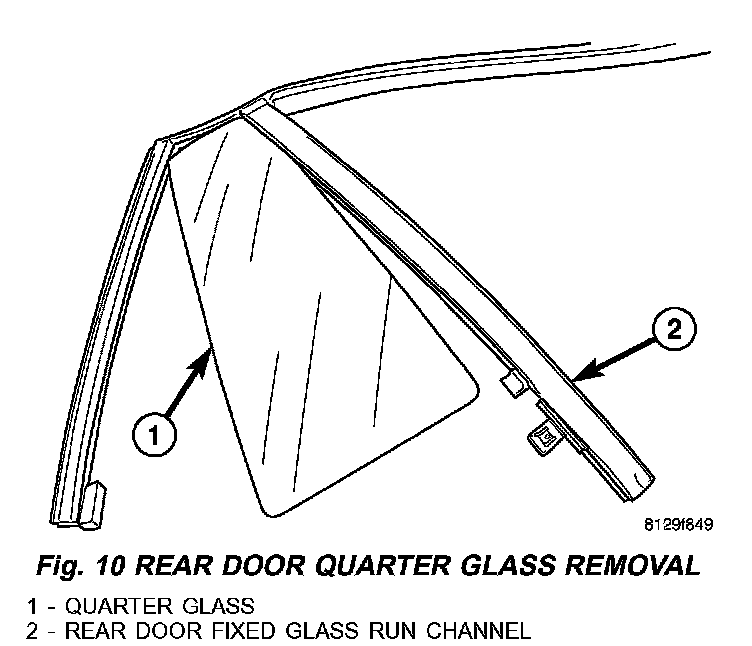

Fig. 10:

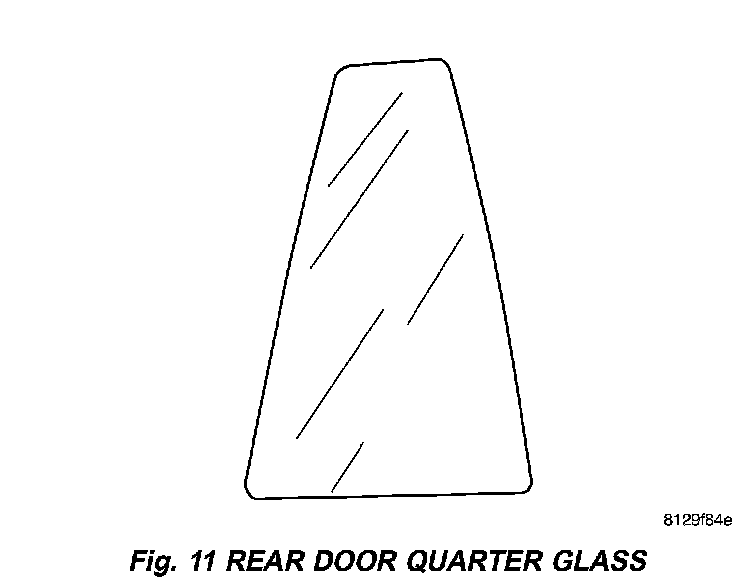

Fig. 11:

10. Remove quarter glass from fixed glass run channel (Fig. 10) and (Fig. 11).

INSTALLATION

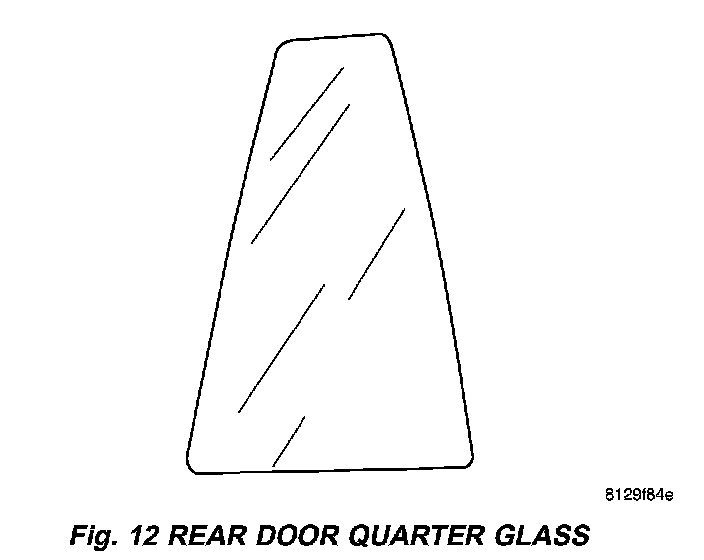

Fig. 12:

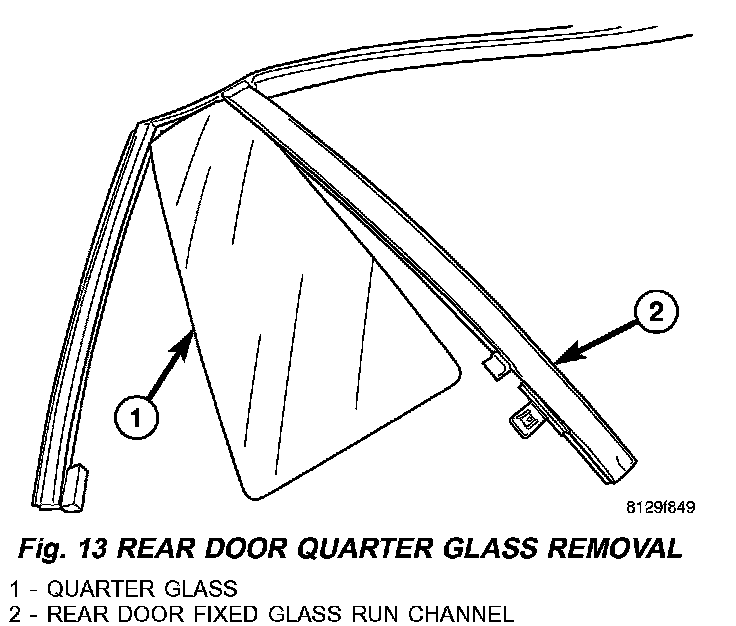

Fig. 13:

1. Position quarter glass into the fixed glass run channel (Fig. 12) and (Fig. 13).
2. Place fixed glass run channel into position in door.
3. Install screw attaching glass run to door panel.

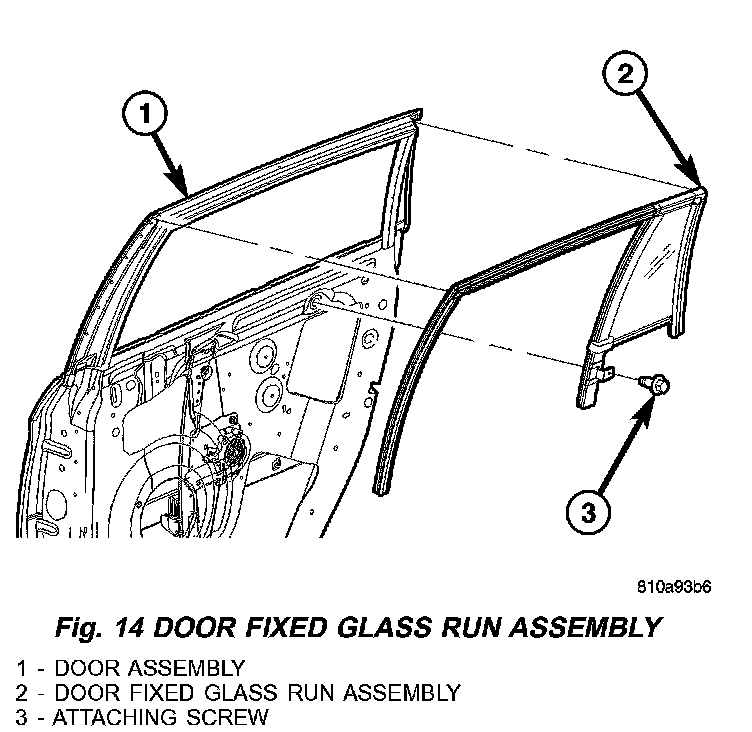

Fig. 14:

4. Insert glass run into window frame channel (Fig. 14).
5. Install inner belt weatherstrip.
6. Install outer belt molding.
7. Install outer belt molding attaching screws.
8. Install watershield.
9. Install door trim panel.
10. Raise door window glass.
