Wiper Switch: Service and Repair

RIGHT MULTIFUNCTION SWITCH

REMOVAL
1. Disconnect and isolate the battery negative cable.
2. Wait two minutes for the airbag system reserve capacitor to discharge before beginning any steering column service.

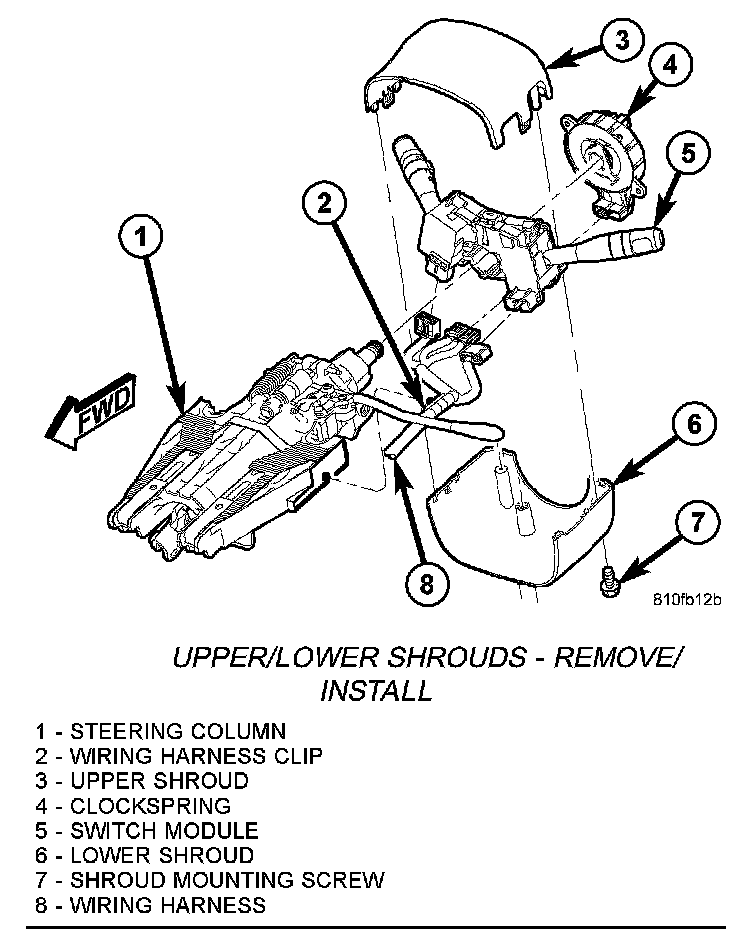

Upper/Lower Shrouds - Remove:

3. Remove the upper and lower steering column shrouds.
4. Disconnect the instrument panel wire harness connector for the right multi-function switch.

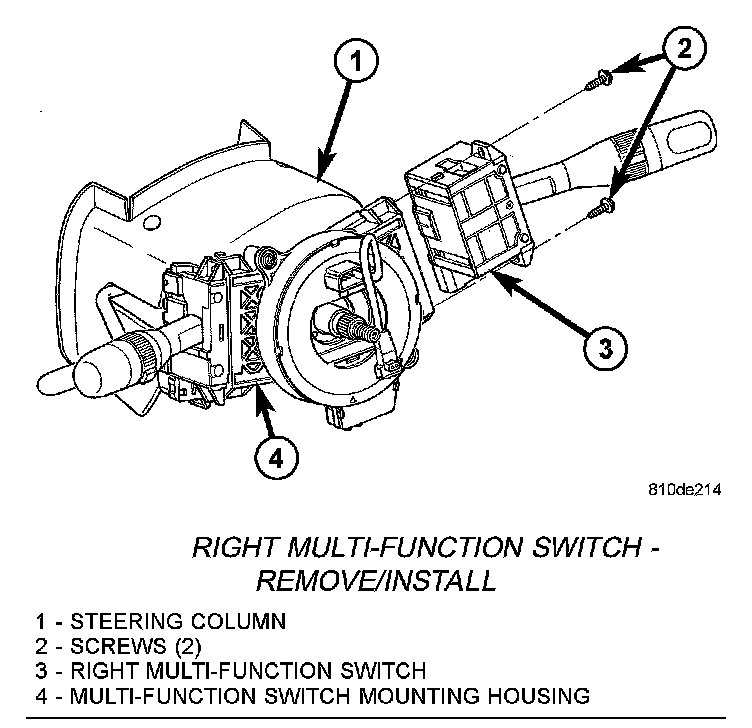

Right Multi-Function Switch Remove/Install:

5. Remove the two screws that secure the right multi-function switch to the multi-function switch mounting housing.
6. Remove the right multi-function switch from the multi-function switch mounting housing.

INSTALLATION
1. Position the right multi-function switch onto the multi-function switch mounting housing.
2. Install the two screws that secure the right multi-function switch to the multi-function switch mounting housing. Torque the screws to 2.5 Nm (22 in. lbs.).
3. Connect the instrument panel wire harness connector to the right multi-function switch.
4. Install the upper and lower steering column shrouds. Torque the screws to 2 Nm (17 in. lbs).
5. Connect the battery negative cable.
6. Verify vehicle and system operation.
