Rear

REAR DISC BRAKE ROTOR

REMOVAL





1. Raise and support the vehicle.
2. Remove the wheel and tire assembly.

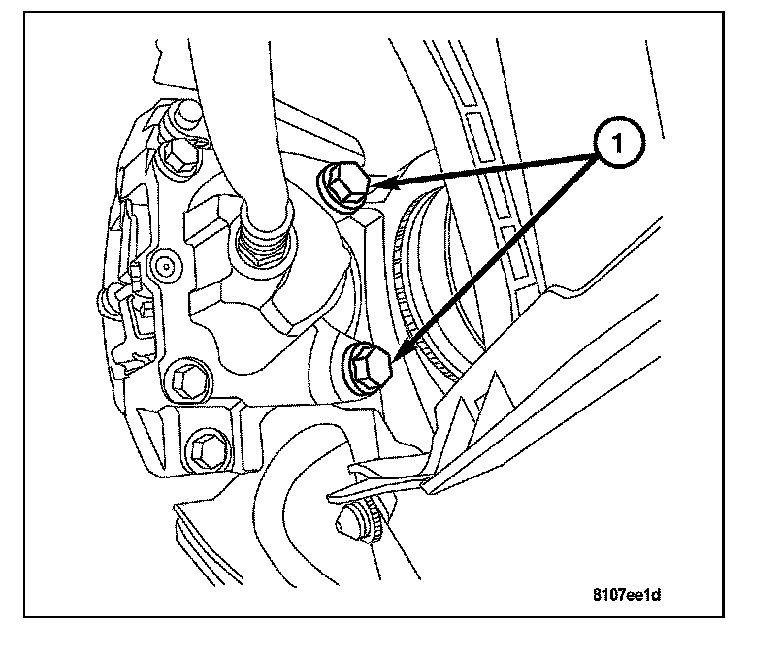

3. Remove the caliper mounting bolts (1) and remove the caliper from the knuckle.





CAUTION: Never allow the disc brake caliper to hang from the brake hose. Damage to the hose can result. Provide a suitable support to hang the caliper securely.

4. Remove the rotor retaining bolt and remove the rotor (1) from the wheel hub.

INSTALLATION





1. Install the rotor (1) onto the wheel hub.
2. Install the rotor retaining bolt. Tighten to 10 Nm (7 ft. lbs.).
3. Install caliper assembly onto rotor.

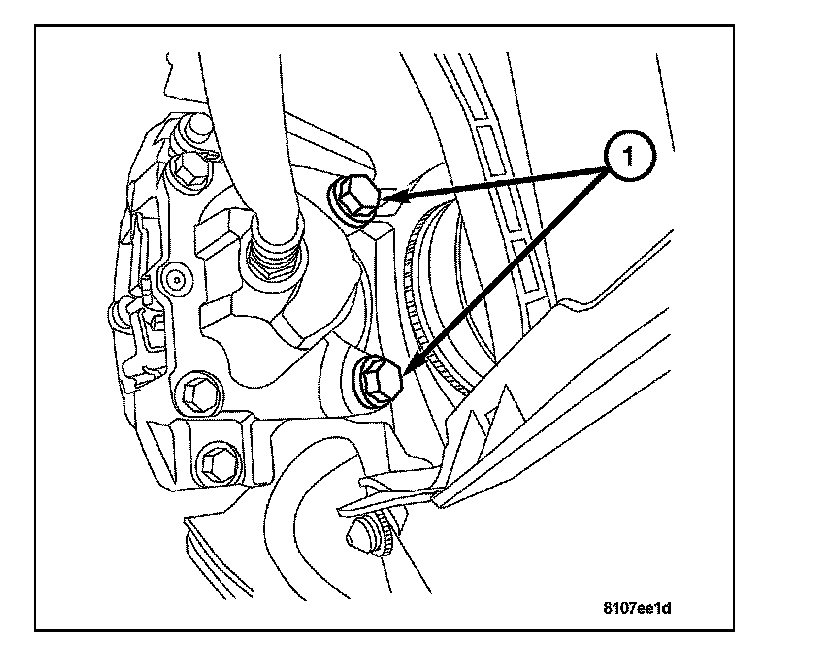

4. Install caliper mounting bolts (1). Tighten to 55 Nm (41 ft. lbs.).
5. Install the wheel and tire assembly.

WARNING: DO NOT MOVE THE VEHICLE UNTIL A FIRM BRAKE PEDAL IS OBTAINED.

6. Lower the vehicle.
7. Pump the brake pedal until the caliper pistons and the brake pads are seated, and a firm brake pedal is achieved.
