Oil Level Sensor: Service and Repair

OIL LEVEL/TEMPERATURE SENSOR

REMOVAL
1. Remove the lower oil pan.

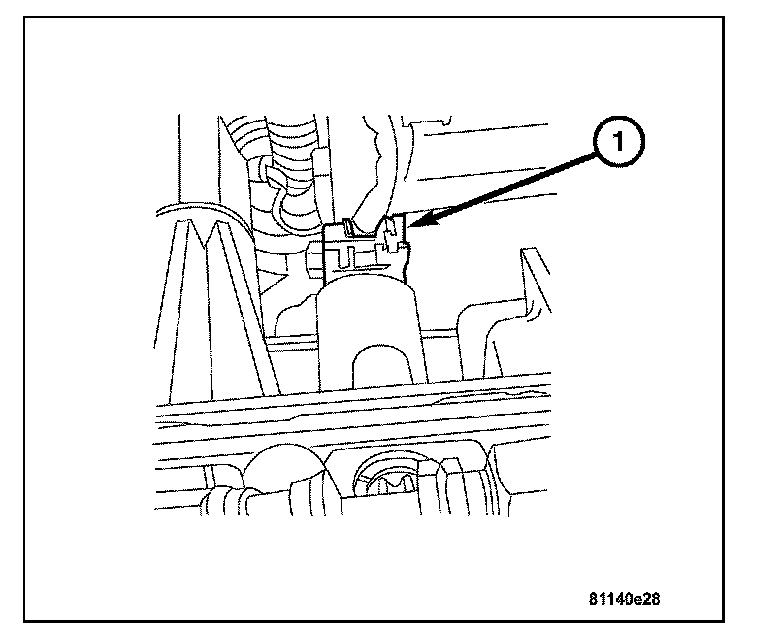

2. Disconnect the oil level/temperature sensor harness connector (1).

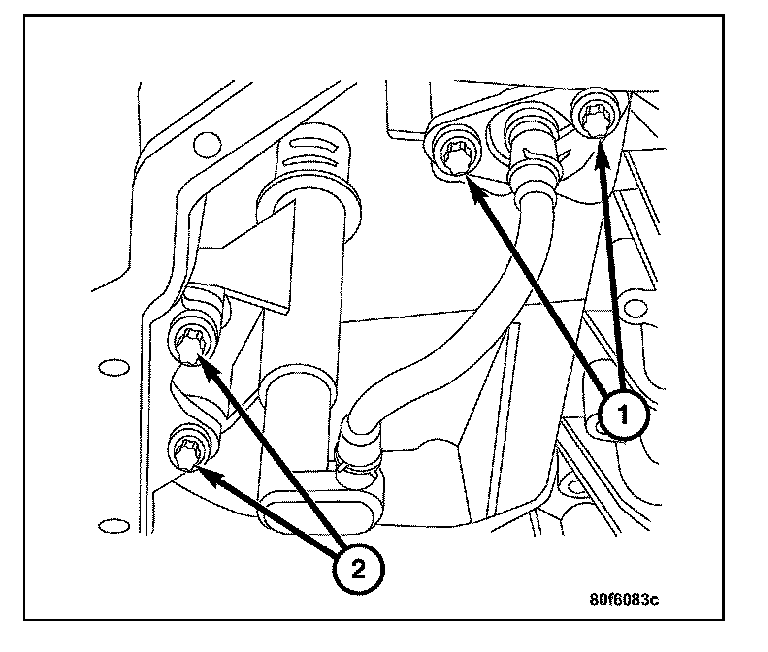

3. Remove the two oil level/temperature sensor screws (1).





4. Remove the two harness retainer screws (2) and the oil level/temperature sensor.

INSTALLATION

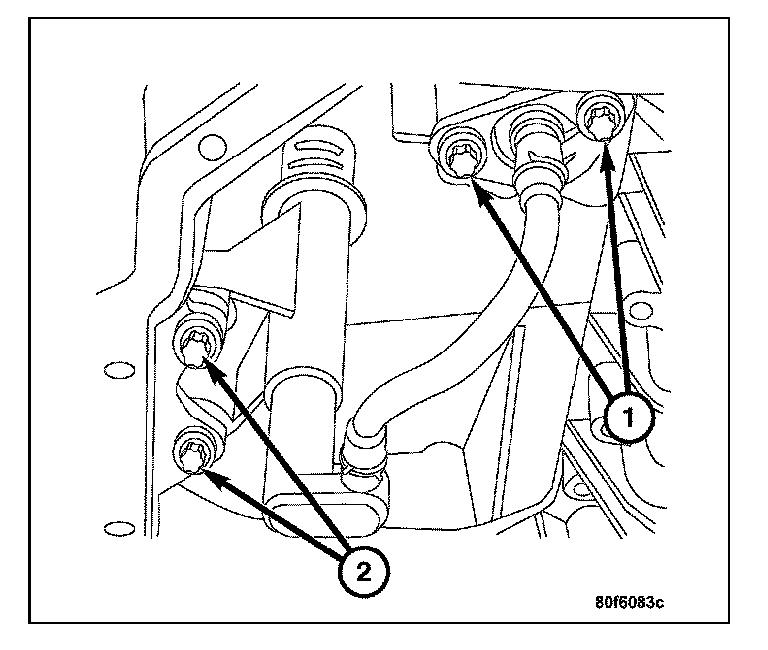

1. Position the oil level/temperature sensor in the upper oil pan with the screws (1).
2. Position the harness retainer in the upper oil pan with the screws (2).
3. Tighten all screws for the oil level/temperature sensor to 10 Nm (89 in. lbs.).

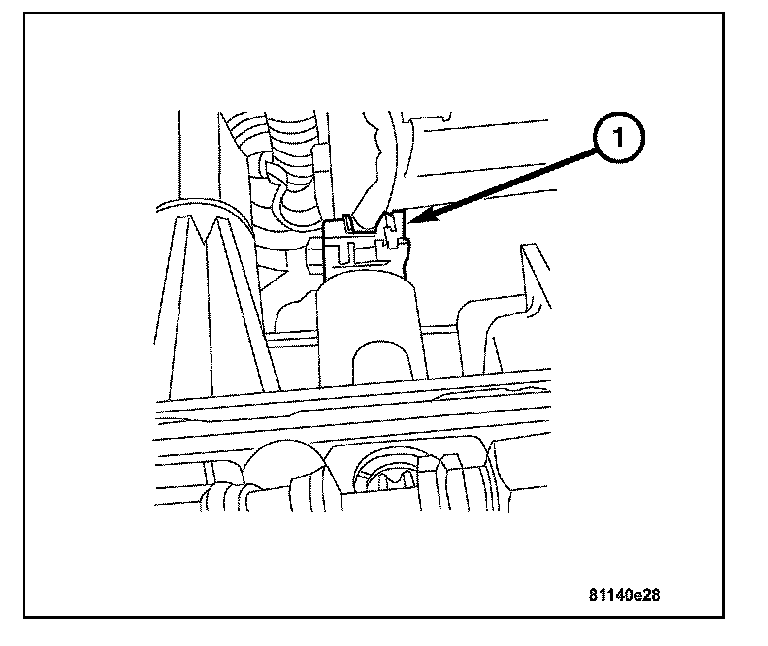

4. Connect the oil level/temperature sensor harness connector (1).
5. Install the lower oil pan.
