Timing Chain Guide: Service and Repair
TIMING CHAIN GUIDES REMOVAL 1.
Remove the

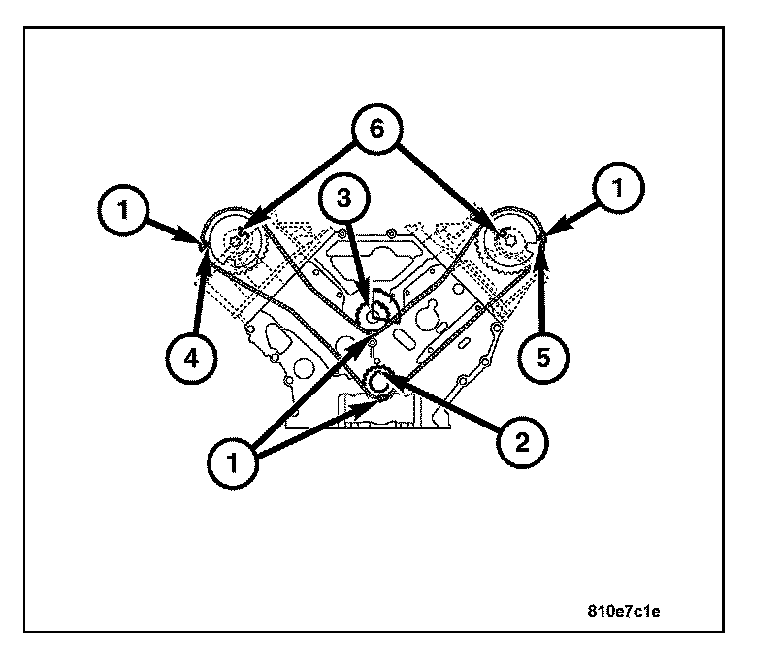

timing chain (1).
2.
Remove the

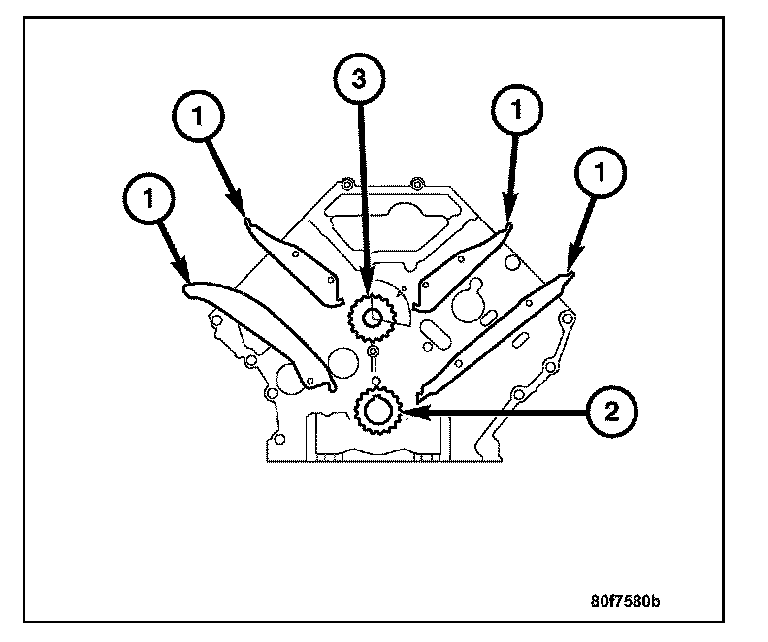

timing chain guides (1) off of the mounting pins. Inspect and replace worn or damaged guides as required.
INSTALLATION 1.
Install the
timing chain guides on the mounting pins. Lubricate surface with engine oil.
2.
Install the
timing chain.
